Lincoln Corsair: Exterior Trim and Ornamentation / Removal and Installation - Liftgate Moulding
Removal
NOTE:
Removal steps in this procedure may include installation details.
-
Remove the liftgate mounted rear lamp assemblies.
Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).
-
Remove the rear gate trunk module.
Refer to: Rear Gate Trunk Module (RGTM) (501-03 Body Closures, Removal and Installation).
-
Disconnect the electrical connector and detach the wiring harness clip.
-

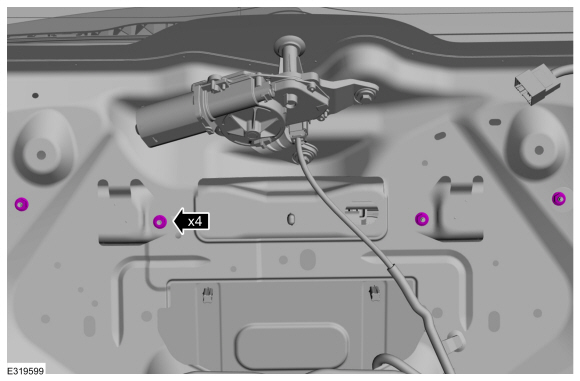

Remove the nuts.
Torque:
33 lb.in (3.7 Nm)
-

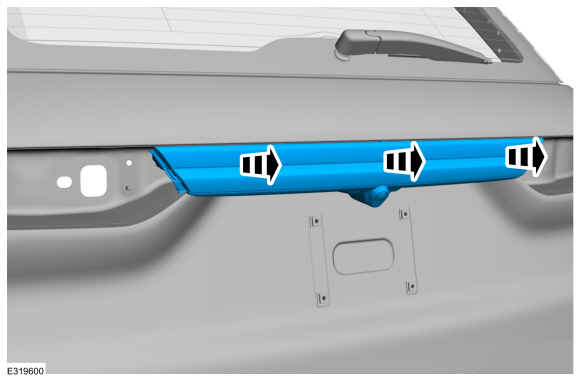

Remove the lift gate moulding.
Installation
-
To install, reverse the removal procedure.
