Lincoln Corsair: Body Closures / Removal and Installation - Liftgate
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Open the liftgate.
-
Remove the high mounted stoplamp.
Refer to: High Mounted Stoplamp (417-01 Exterior Lighting, Removal and Installation).
-
Remove the D-pillar trim panel.
Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-
Release the clips.
-
Lower the rear headliner.
-
-
Disconnect the electrical connectors.
-
Remove the fastener.
Torque:
97 lb.in (11 Nm)
-
Disconnect the rear wiper washer hose from the wiper hose coupling.
-
Remove the grommet and route the harness out of the liftgate.
-
Mark the location of the liftgate hinge.
-
NOTE:
This step requires the aid of another technician.
On both sides.

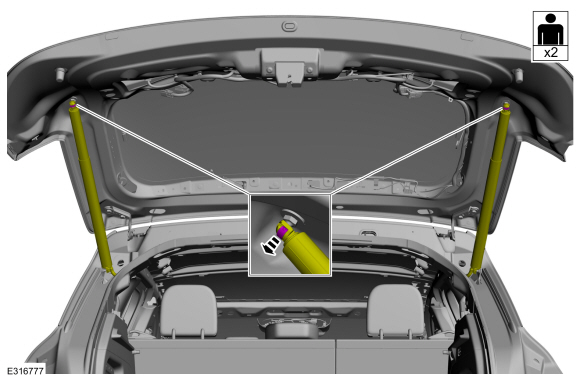

Remove the clips holding the liftgate strut or the power liftgate motor and position aside.
-
NOTE:
This step requires the aid of another technician.

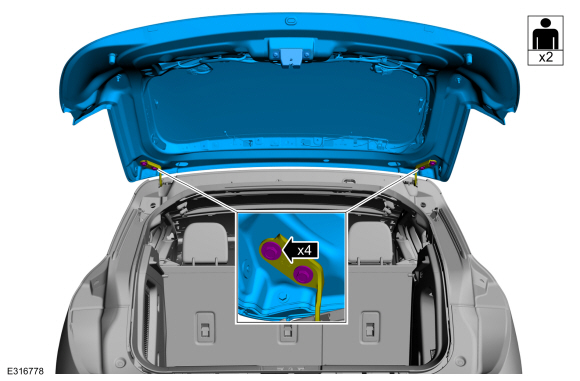

Remove the bolts and the liftgate.
Torque:
22 lb.ft (30 Nm)
Installation
-
To install, reverse the removal procedure.
-
Align the liftgate as necessary.
Refer to: Liftgate Alignment (501-03 Body Closures, General Procedures).
Vehicles with power liftgate
-
Perform the power liftgate initialization.
Refer to: Power Liftgate Initialization (501-03 Body Closures, General Procedures).
