Lincoln Corsair: Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Upper Sensor

Lincoln Corsair 2020-2025 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Upper Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02) .

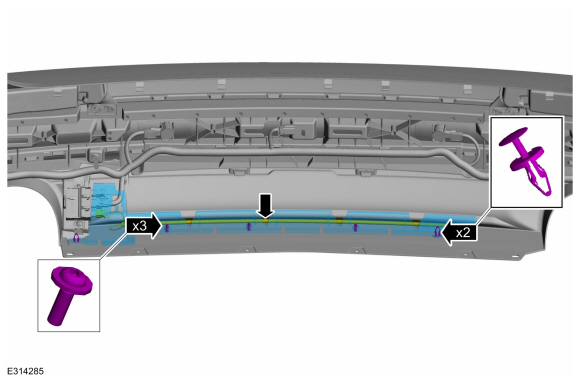

  1. Remove the push pins, the screws and the lower bumper cover bracket assembly. Position the hands-free liftgate actuation lower sensor aside.

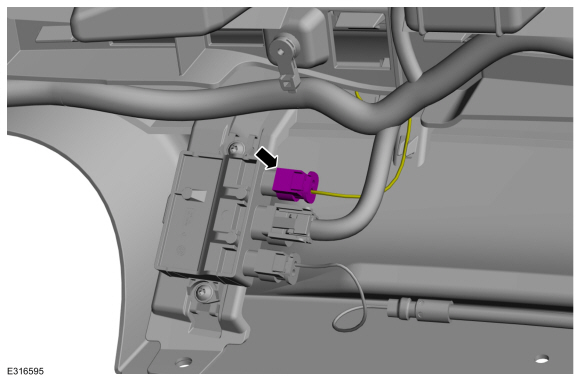

  1. Disconnect the hands-free liftgate actuation upper sensor electrical connector.

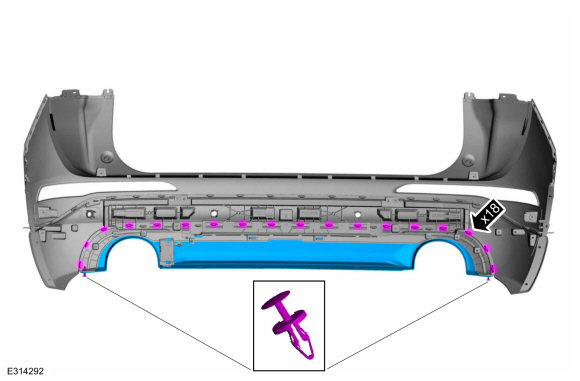

  1. Remove the push pins, release the tabs and remove the lower rear bumper cover valence.

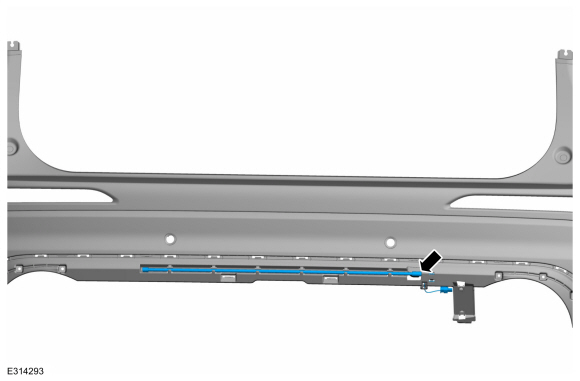

  1. Remove the hands-free liftgate actuation upper sensor.

Installation

  1. To install, reverse the removal procedure.
