Lincoln Corsair: Engine Cooling - 2.0L EcoBoost (177kW/240PS) – MI4 / Removal and Installation - Cooling Module

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer
Interior Trim Remover

Removal

NOTICE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the air cleaner.
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 2.0L EcoBoost (177kW/240PS) – MI4, Removal and Installation).
  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 2.3L EcoBoost (199kW/270PS), General Procedures).
  1. Recover the A/C system.
    Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant (412-00) .
    Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant (412-00) .
  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
  1. Remove the headlamp assemblies.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

    • Remove the push pins.
    • Release the clips, tabs and remove the radiator air deflectors.
      Use the General Equipment: Interior Trim Remover
    • If equipped.
      Remove the CCM .
      Refer to: Cruise Control Module (CCM) (419-03B Cruise Control - Vehicles With: Adaptive Cruise Control With Lane Centering, Removal and Installation).
  1. Remve the air cleaner intake pipe.
    Refer to: Air Cleaner Intake Pipe (303-12A Intake Air Distribution and Filtering - 2.0L EcoBoost (177kW/240PS) – MI4, Removal and Installation).

    • Disconnect the electrical connector.
    • Detach the latch cable retainers.
    • Remove the bolts and position the latch assembly aside.
      Torque: 93 lb.in (10.5 Nm)
  1. NOTE: Support the hood before removing the hood support rod.

    Remove the hood support rod.
  1. Disconnect the cooling fan and shroud electrical connector and detach the wiring harness retainers.
  1. If equipped.
    Detach the wiring harness retainers.
  1. Release the clamp and disconnect the upper radiator hose.
    Use the General Equipment: Hose Clamp Remover/Installer
  1. Detach the retainer, release the clamps and disconnect the transmission oil cooler hoses.
    Use the General Equipment: Hose Clamp Remover/Installer

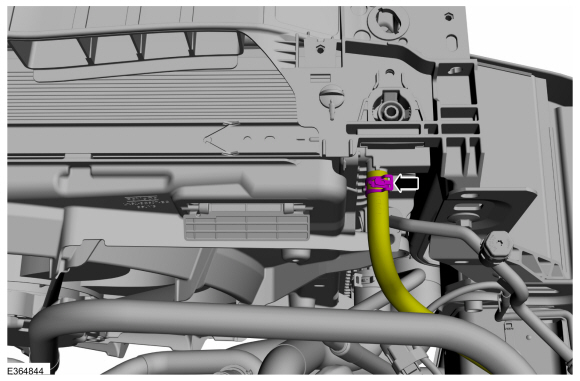

  1. Release the clamp and disconnect the radiator vent hose.
    Use the General Equipment: Hose Clamp Remover/Installer
  1. NOTICE: Make sure that all openings are sealed.


    1. Remove the nut and disconnect the condenser inlet fitting.
      Torque: 159 lb.in (18 Nm)
    1. Remove the nut and disconnect the condenser outlet fitting.
      Torque: 80 lb.in (9 Nm)
  1. NOTE: Ensure the quick fit connector is fully inserted until the wire clip falls into the groove and gets locked.

    Release the quick fit connector and disconnect the CAC outlet hose.

    • Release the clamp and disconnect the coolant hose.
      Use the General Equipment: Hose Clamp Remover/Installer
    • NOTE: Ensure the quick fit connector is fully inserted until the wire clip falls into the groove and gets locked.

      Release the quick fit connector and disconnect the CAC inlet hose.
  1. Disconnect the electrical connector.
  1. Detach the A/C pressure switch wiring harness retainer.
  1. Disconnect the horn electrical connector and detach the wiring harness retainer.
  1. Remove the bottom cooling module support bar bolts.
    Torque: 22 lb.ft (30 Nm)
  1. On both side.
    Remove the bolt.
    Torque: 46 lb.ft (63 Nm)
  1. NOTE: This step requires the aid of another technician.

    Remove the nuts and the cooling module assembly.
    Torque: 46 lb.ft (63 Nm)
  1. Remove the cooling module assembly bolts and the bumper reinforcement.
    Torque: 93 lb.in (10.5 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Install and lubricate new condenser fitting O-ring seals.
    Refer to: Specifications (412-00 Climate Control System - General Information, Specifications).
  1. Evacuate, leak test and charge the A/C system.
    Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant (412-00 Climate Control System - General Information - 2.0L EcoBoost (177kW/240PS) – MI4) .
    Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant (412-00 Climate Control System - General Information - 2.0L EcoBoost (177kW/240PS) – MI4) .
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 2.3L EcoBoost (199kW/270PS), General Procedures).
  1. Check and fill the transmission fluid as necessary.
    Refer to: Transmission Fluid Level Check (307-01B Automatic Transmission - Automatic Transmission – HF45, General Procedures).
