Lincoln Corsair: Engine System - General Information / General Procedures - Piston Diameter
Lincoln Corsair 2020-2022 Service Manual / Powertrain / Engine / Engine System - General Information / General Procedures - Piston Diameter
Check
NOTE: Refer to the appropriate Section 303-01 for the specification.
-

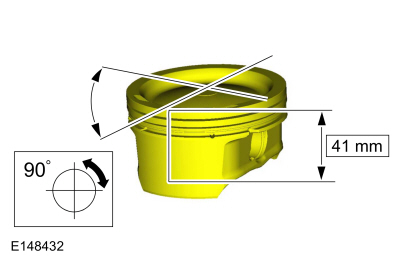

Measure the piston diameter 90 degrees from the piston
pin and 41 mm (1.61 in) down from the top of the piston at the point
indicated.
 |
General Procedures - Oil Pressure Test
Oil Pressure Test 2.7L EcoBoost & 3.3L Duratec & 5.0L Ti-VCT
NOTE:
It is necessary to disconnect the battery to avoid
setting any DTCs that could cause the PCM to command the oil pressure to
other than what should be observed from a correctly operating system
during the oil pressure test...
General Procedures - Piston Inspection
Inspection
NOTE:
Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur.
Clean and inspect the (1) ring lands, (2) pin bosses,
(3) skirts and the (4) tops of the pistons...
