Lincoln Corsair: Handles, Locks, Latches and Entry Systems / General Procedures - Liftgate Latch Manual Release
Lincoln Corsair 2020-2026 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / General Procedures - Liftgate Latch Manual Release
Special Tool(s) / General Equipment
| Flat-Bladed Screwdriver | |
| Interior Trim Remover |
Activation
-

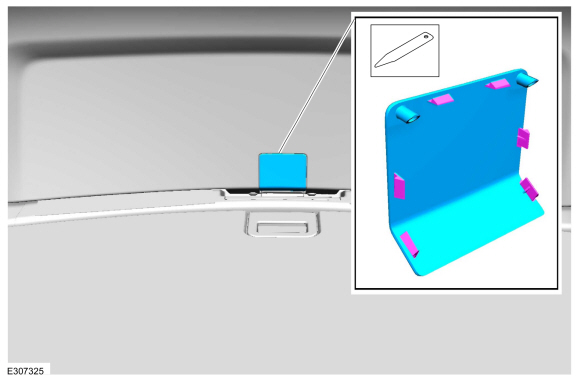

Remove the liftgate latch access cover from the center of the liftgate trim panel.
Use the General Equipment: Interior Trim Remover
.jpg) |
-

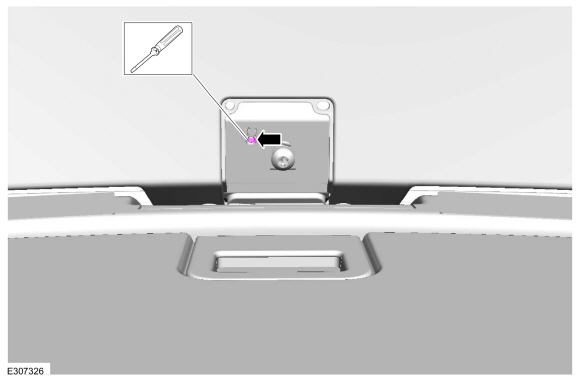

Insert a flat-bladed screwdriver through the access cover opening and depress the cinch release button.
Use the General Equipment: Flat-Bladed Screwdriver
.jpg) |
-
Insert a 3.5 mm wide flat-bladed screwdriver through the access cover opening 10 mm deep into the RH side of the slot.
Use the General Equipment: Flat-Bladed Screwdriver
.jpg) |
-

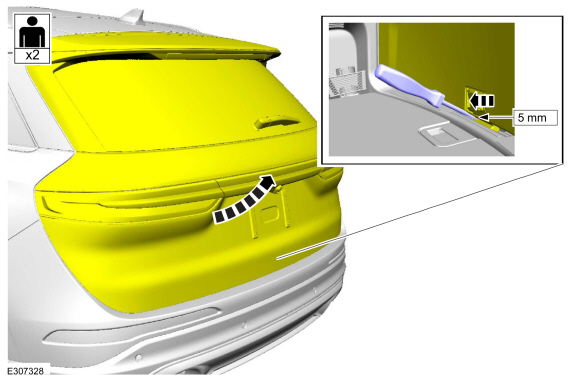

Slide the 3.5 mm wide flat-bladed screwdriver through the access cover
opening 5 mm to the LH side of the slot. Releasing the liftgate latch
and opening the liftgate.
Use the General Equipment: Flat-Bladed Screwdriver
.jpg) |
General Procedures - Door Latch Lubrication
Special Tool(s) /
General Equipment
Flat-Bladed Screwdriver
Materials
Name
Specification
Motorcraft® Multi-Purpose Grease SprayXL-5-A
ESB-M1C93-B
Activation
NOTE:
Typical left front door shown, others similar...
General Procedures - Staged Unlock Programming
Activation
With the ignition in OFF, press the LOCK and UNLOCK buttons on the RKE transmitter simultaneously for 4 seconds.
The turn signals flash twice to indicate the mode change...
