Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

Remove the PTU.
Refer to: Power Transfer Unit - Vehicles Without: Power Transfer Unit Oil-to-Coolant Cooler (307-07B Power Transfer Unit - 2.0L EcoBoost (177kW/240PS) – MI4, Removal).

NOTE: The PTU actuator motor bolts are internal torx plus® design. Use a TP30 driver bit to remove and install the bolts.

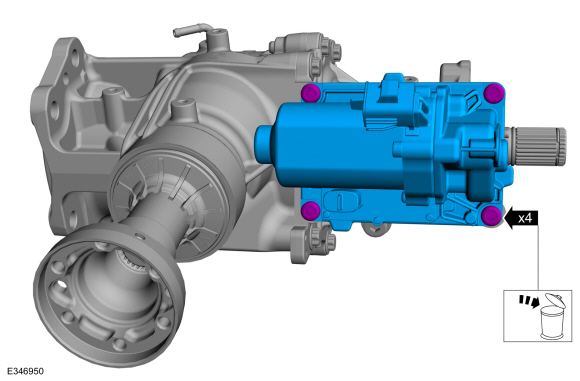

Remove and discard actuator motor bolts. Remove the actuator.
Torque: 97 lb.in (11 Nm)

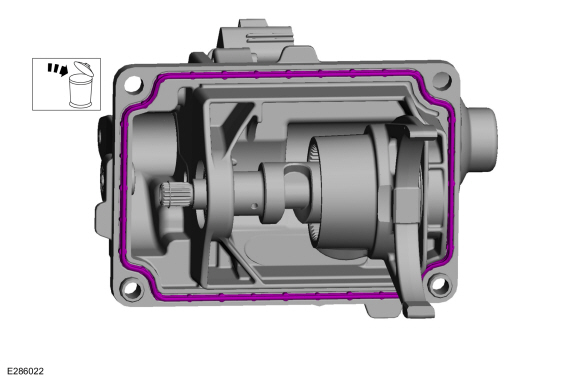

Remove and discard the actuator motor seal.

Installation

To install, reverse the removal procedure.

General Procedures - Power Transfer Unit Fluid Level Check
