Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the underbody shield.
    Refer to: Engine Front Undershield (501-02 Front End Body Panels, Removal and Installation).

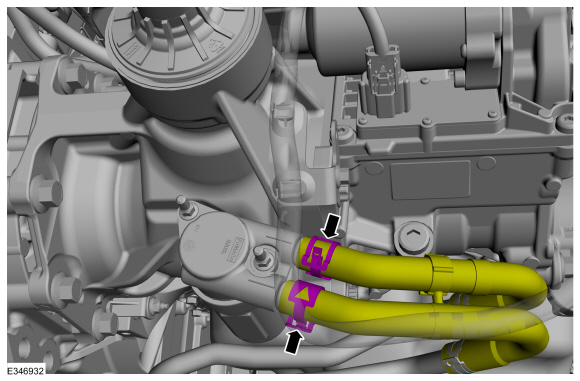

  1. Clamp the hoses.
  1. Release the hose clamps and position aside the PTU cooling system hoses.

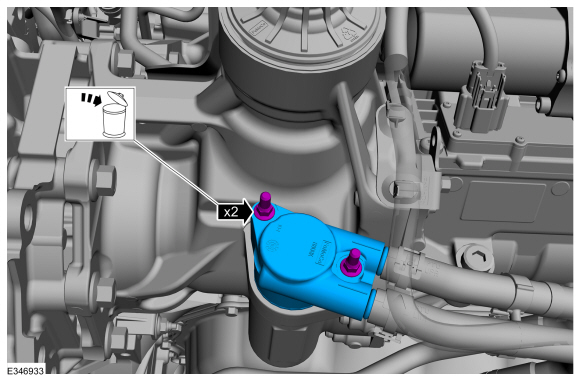

  1. NOTE: Be prepared to catch escaping fluid.

    Remove the nuts and PTU cooler.
    Torque: 97 lb.in (11 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Fill the PTU.
    Refer to: Power Transfer Unit Draining and Filling (307-07B Power Transfer Unit - 2.0L EcoBoost (177kW/240PS) – MI4, General Procedures).
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 2.3L EcoBoost (199kW/270PS), General Procedures).
