Lincoln Corsair: Automatic Transmission External Controls - Automatic Transmission – HF45 / Removal and Installation - Gear Shift Module (GSM)

Lincoln Corsair 2020-2023 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission External Controls - Automatic Transmission – HF45 / Removal and Installation - Gear Shift Module (GSM)

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

  1. Remove the FCIMB .
    Refer to: Front Controls Interface Module B (FCIMB) (415-00 Information and Entertainment System - General Information, Removal and Installation).

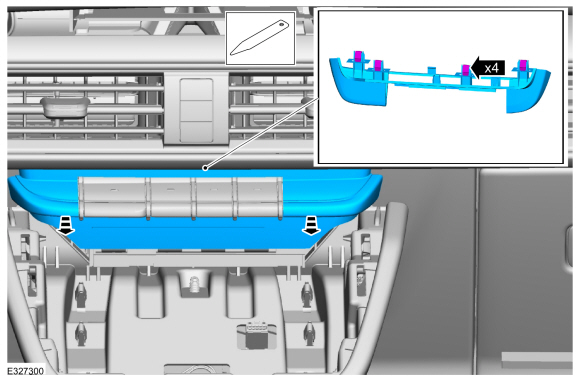

  1. Release the clips and remove the GSM finish panel.
    Use the General Equipment: Interior Trim Remover

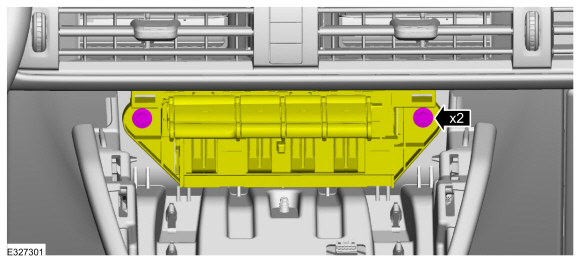

  1. Remove the screws and the GSM .

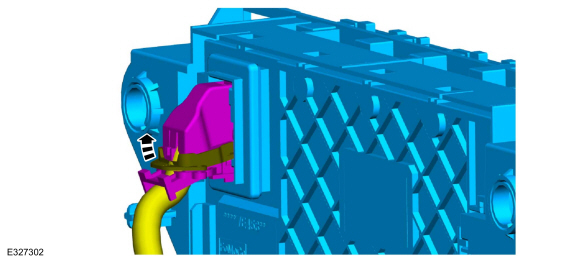

  1. Disconnect the GSM electrical connector.

Installation

  1. Connect the GSM electrical connector.
  1. Install the GSM and the screws.

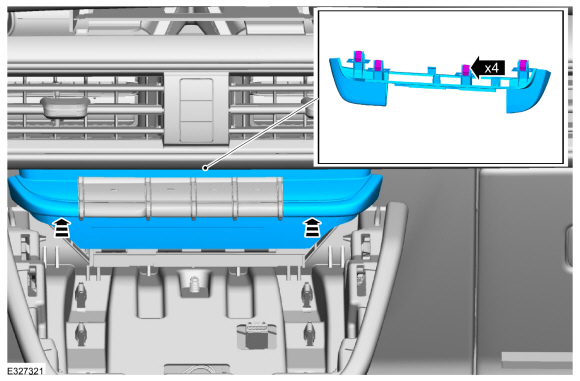

  1. Install the GSM finish panel.
  1. Install the FCIMB .
    Refer to: Front Controls Interface Module B (FCIMB) (415-00 Information and Entertainment System - General Information, Removal and Installation).
  1. If a new GSM was installed, verify the calibration is at the latest level.
    Refer to: Module Programming (418-01 Module Configuration, General Procedures).
