Lincoln Corsair: Front Seats / Removal and Installation - Front Seat Cushion Blower Motor

Lincoln Corsair 2020-2024 Service Manual / Body and Paint / Body and Paint / Front Seats / Removal and Installation - Front Seat Cushion Blower Motor

Removal

NOTE: Driver seat shown, passenger seat similar.

  1. Move the front seat to the full upward and forward position.
  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

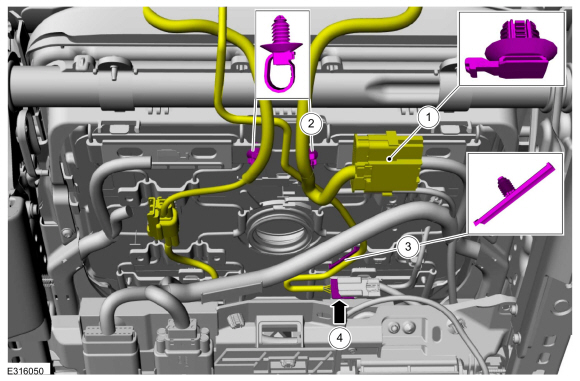

  1. Remove the front seat cushion blower motor.
    1. Disconnect the electrical connector.
    1. Rotate the front seat cushion blower motor 45 degrees clockwise.

Installation

  1. To install, reverse the removal procedure.
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
