Lincoln Corsair: Front Seats / Removal and Installation - Front Seat Backrest Cover

Lincoln Corsair 2020-2023 Service Manual / Body and Paint / Body and Paint / Front Seats / Removal and Installation - Front Seat Backrest Cover

Special Tool(s) / General Equipment

Interior Trim Remover
Hog Ring Plier

Removal

NOTE: Driver seat shown, passenger seat similar.

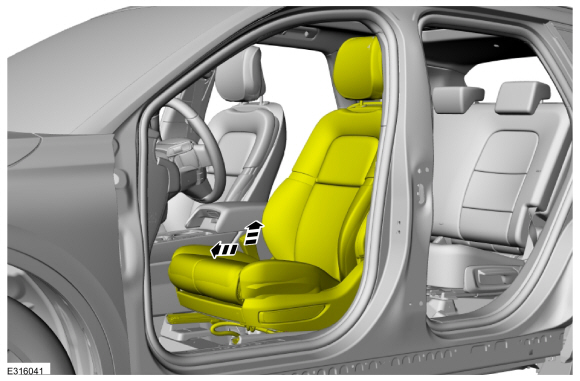

  1. Remove the front seat.
    Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

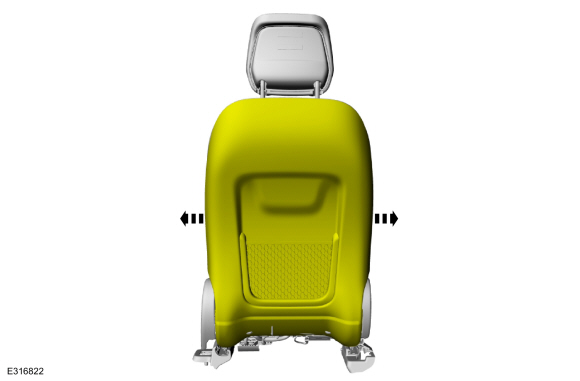

  1. Remove the front seat backrest panel.
    Refer to: Front Seat Backrest Panel (501-10A Front Seats, Removal and Installation).
  1. Remove the front seat backrest blower motor.
    Refer to: Front Seat Backrest Blower Motor (501-10A Front Seats, Removal and Installation).

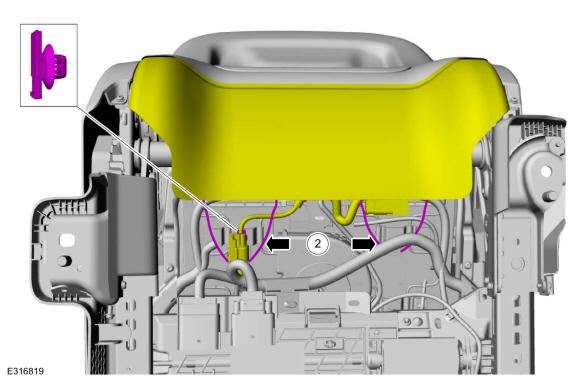

    1. Disconnect the front seat backrest heater mat electrical connector.

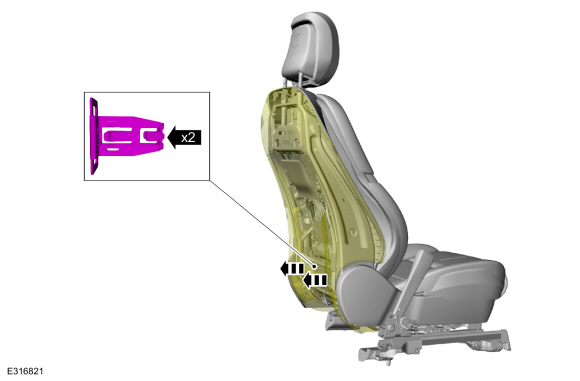

    1. Remove the front seat backrest cover carrier tie straps.

With multi-contour seats

  1. NOTE: After disconnecting the hose and lock assemblies, verify the black O-ring and white spacer remains with each hose.

    NOTE: When connecting the hose and lock assemblies, an audible click must be heard for correct installation.

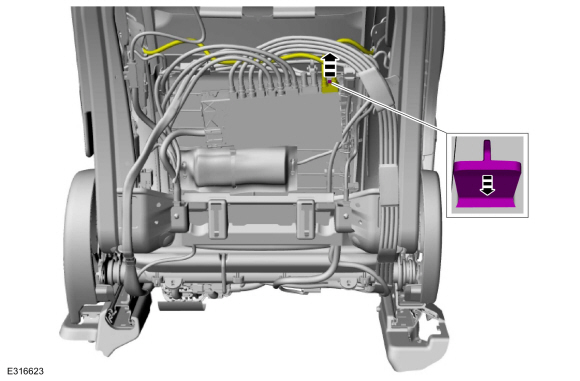

    Release the locking tab and disconnect the hose and lock assembly from the SCMG .

All seats

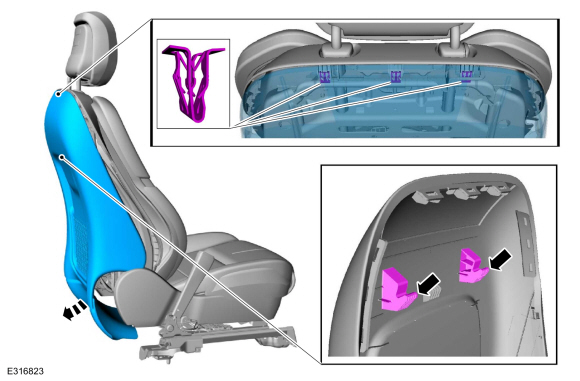

  1. Remove the front seat backrest cover assembly.

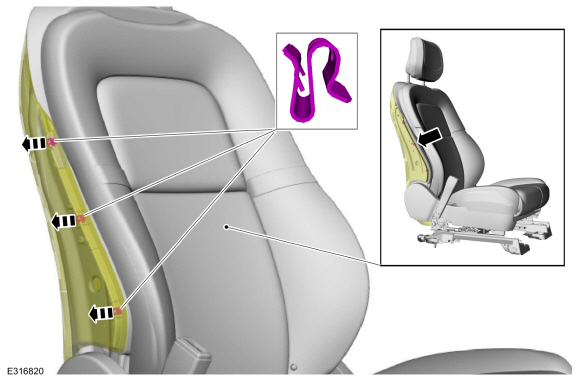

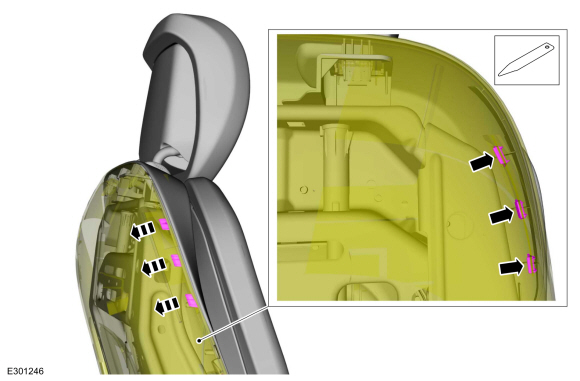

    1. Detach the front seat backrest assembly from the backrest module retainers.
      Use the General Equipment: Interior Trim Remover
    1. Position the front seat backrest assembly to release the retainers.
    1. Lift the front seat backrest cover assembly up to release the upper retainer.
  1. NOTE: This step is only necessary when installing a new component.

    If equipped with heated/ventilated seats.
    Detach the front seat backrest carrier from the vent bag.
    1. Release the tabs.
    1. Detach the front seat backrest carrier from the vent bag.
  1. NOTE: This step is only necessary when installing a new component.

    1. Remove the front seat backrest cover hog rings.
    1. Detach the front seat backrest cover retainers.
  1. NOTE: This step is only necessary when installing a new component.

    Release the hook-and-arrows and remove the front seat backrest cover carrier.
  1. NOTE: This step is only necessary when installing a new component.


    Remove the front seat backrest cover.
    1. Invert the front seat backrest cover.
    1. Remove the front seat backrest cover hog rings.

Installation

  1. To install, reverse the removal procedure.
  1. Use the General Equipment: Hog Ring Plier
