Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the differential pressure feedback EGR sensor.
Refer to: Differential Pressure Feedback Exhaust Gas Recirculation
(EGR) Sensor (303-08A Engine Emission Control - 2.0L EcoBoost
(177kW/240PS) – MI4, Removal and Installation).
-
-
Disconnect the electrical connector.
-

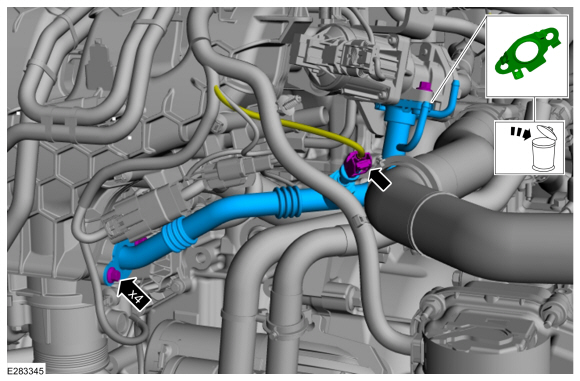

Remove the fasteners.
Torque:
97 lb.in (11 Nm)
-
Remove the EGR outlet tube, remove and discard the gasket.
-
NOTE:
When removing the sensor, use a suitable spanner on
both the sensor body and the sensor mounting boss, to prevent the
removal force from damaging the EGR tube.

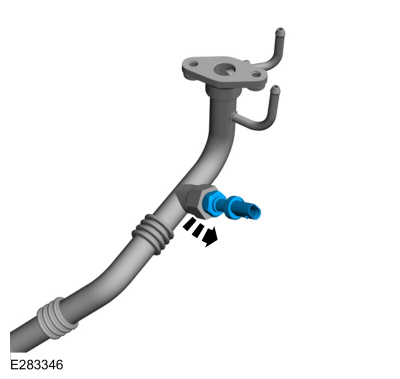

Remove the EGR cooler outlet temperature sensor.
-

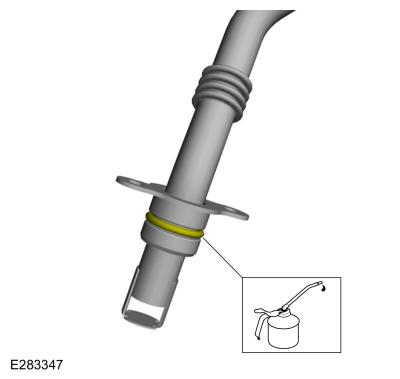

Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.
-
Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.
Installation
-
Install the EGR cooler outlet temperature sensor
-
-

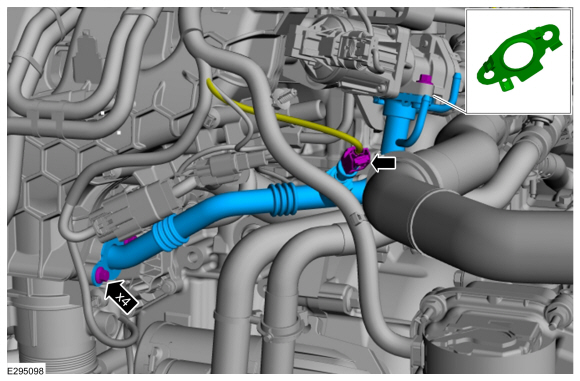

Install the new gasket and EGR outlet tube.
-
Install the fasteners.
Torque:
97 lb.in (11 Nm)
-
Connect the electrical connector.
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the air cleaner outlet pipe.
Refer to: Air Cleaner Outlet Pipe (303-12A Intake Air Distribution and
Filtering - 2...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the differential pressure feedback EGR sensor.
Refer to: Differential Pressure Feedback Exhaust Gas Recirculation
(EGR) Sensor (303-08A Engine Emission Control - 2...
