Lincoln Corsair: Capacities and Specifications / Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Lincoln Corsair 2020-2024 Owners Manual / Capacities and Specifications / Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Use oil and fluid that meets the defined specification and viscosity grade.

If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:

  • Component damage that your vehicle warranty does not cover.
  • Longer engine cranking periods.
  • Increased emission levels.
  • Reduced engine performance.
  • Reduced fuel economy.
  • Reduced brake performance.

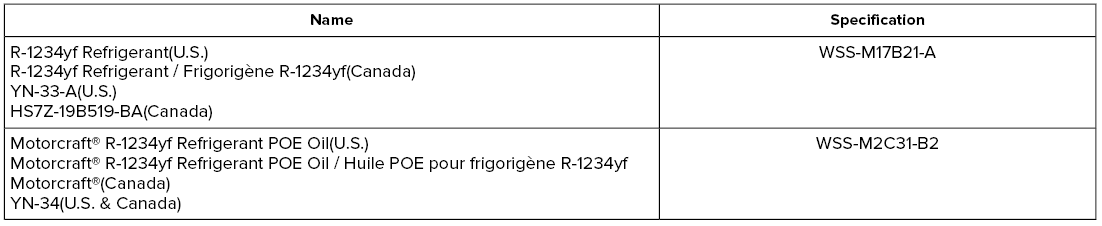

Air Conditioning System

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacities

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Materials

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

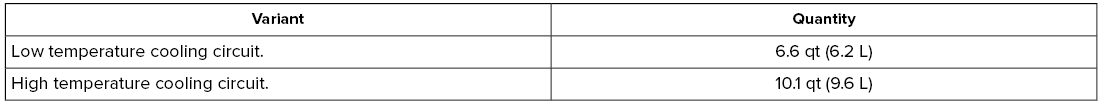

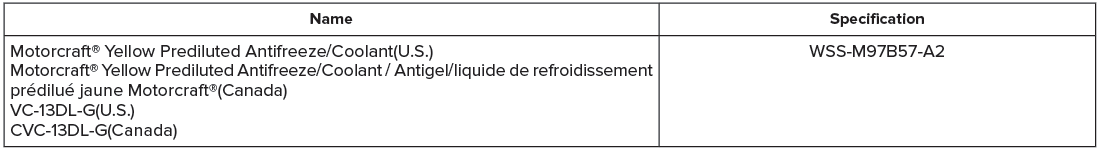

Engine Coolant

Capacities

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Materials

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

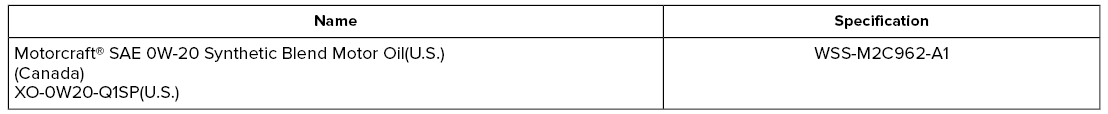

Engine Oil

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC. We recommend Motorcraft motor oil for your vehicle. If Motorcraft oil is not available, use motor oils of the recommended viscosity grade that meet API SP requirements and display the API Certification Mark for gasoline engines.

Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage not covered by your vehicle warranty.

Capacities

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Materials

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Fuel Tank

Capacities

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

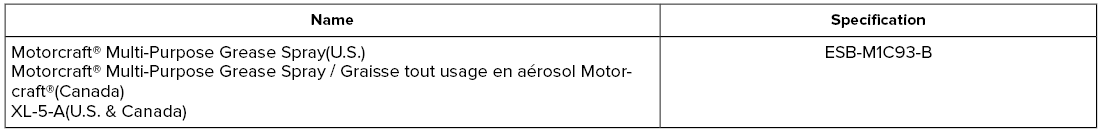

Grease

Materials

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

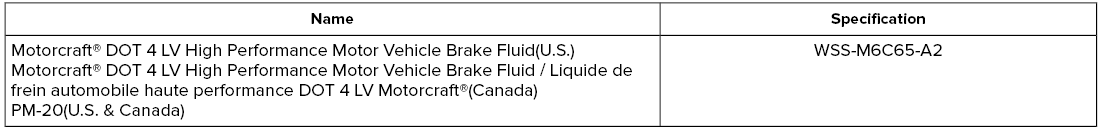

Hydraulic Brake System

Materials

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid could cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials could result in brake system damage and possible failure.

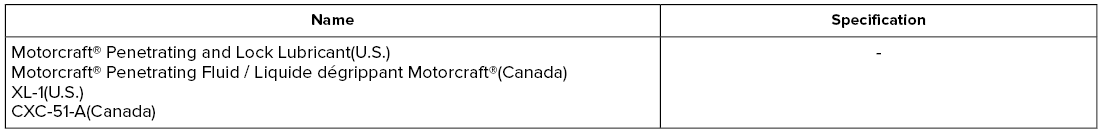

Locks

Materials

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

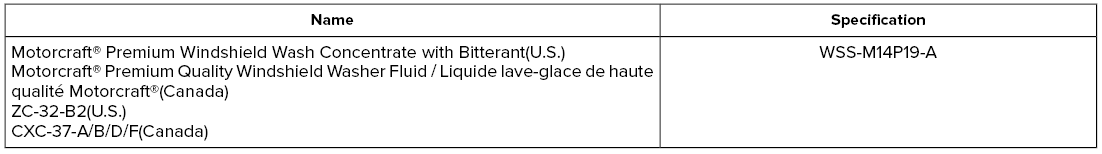

Washer Reservoir

Capacities

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Materials

Lincoln Corsair. Capacities and Specifications - 2.5L, Plug-In Hybrid Electric Vehicle (PHEV)

Bulb Specification Chart

All exterior and interior lamps are LED.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.
