Lincoln Corsair: Automatic Transmission - 8-Speed Automatic Transmission – 8F35/8F40 / Removal and Installation - Turbine Shaft Speed (TSS) Sensor and Intermediate Speed Sensor A (ISSA)

Lincoln Corsair 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 8-Speed Automatic Transmission – 8F35/8F40 / Removal and Installation - Turbine Shaft Speed (TSS) Sensor and Intermediate Speed Sensor A (ISSA)

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the LH front fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

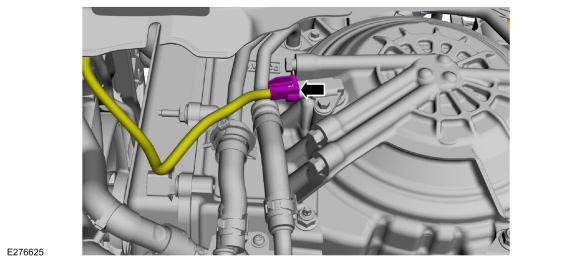

  1. Disconnect the TSS sensor electrical connector.
  1. Remove the bolt and the TSS sensor.

Installation

  1. Install the TSS sensor and the bolt.
    Torque: 97 lb.in (11 Nm)
  1. Connect the TSS sensor electrical connector.
  1. Install the LH front fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
