Lincoln Corsair: Anti-Lock Brake System (ABS) and Stability Control / Removal and Installation - Rear Wheel Speed Sensor - LHD FWD

Materials

Name Specification
Motorcraft® Metal Brake Parts Cleaner
PM-4-A, PM-4-B, APM-4-C
-


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. Disconnect the electrical connector.

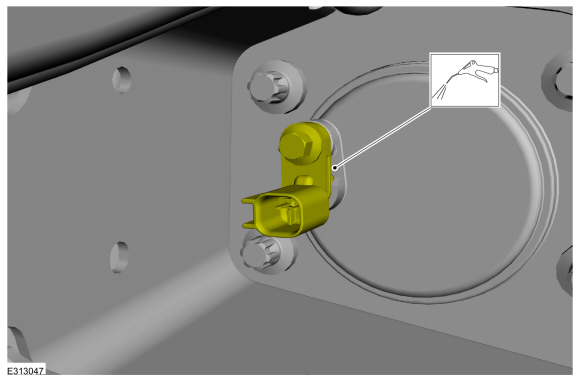

  1. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

    Using compressed air, clean the sensor housing area.

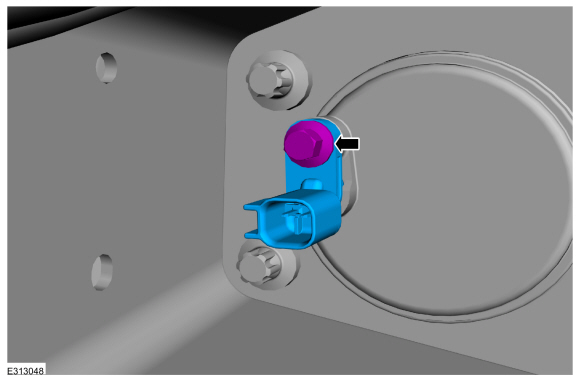

  1. Remove the bolt and the rear wheel speed sensor.
    Torque: 71 lb.in (8 Nm)

Installation

  1. NOTICE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur.

    Clean and inspect the sensor housing cavity.
    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B, APM-4-C
  1. To install, reverse the removal procedure.
