Lincoln Corsair: Interior Trim and Ornamentation / Removal and Installation - Loadspace Scuff Plate Trim Panel
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

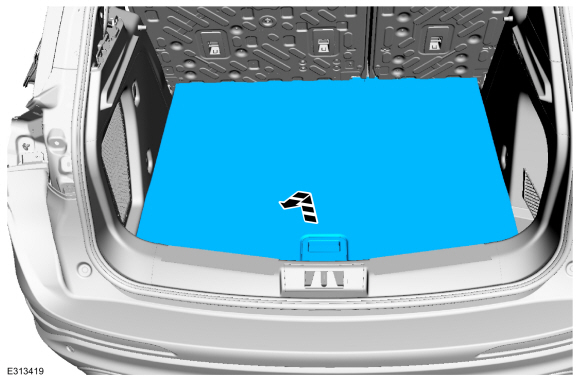

Remove the spare tire cover.
-

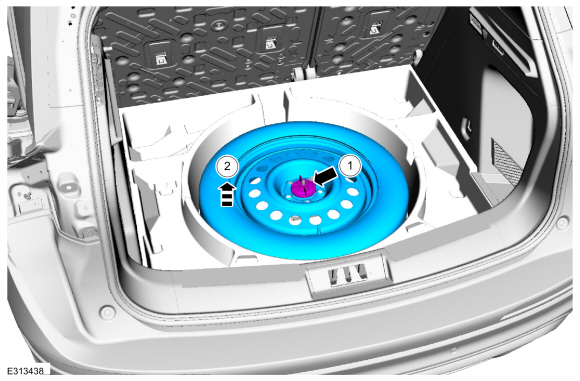

Remove the spare tire.
-
Remove the spare tire retainer.
-
Remove the spare tire.
-
On RH side.

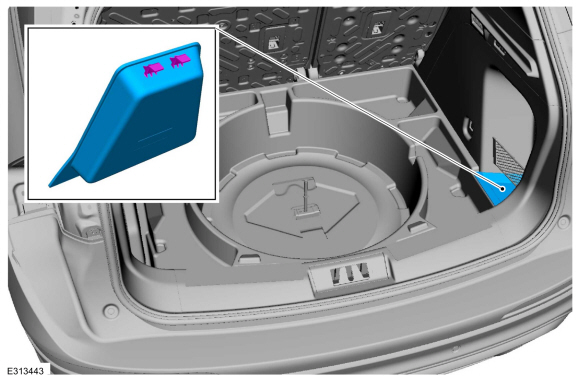

Release the tabs and remove the loadspace side trim panel.
-

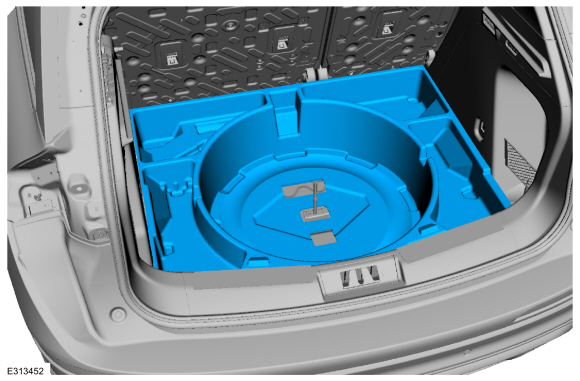

Remove the floor storage bin.
-

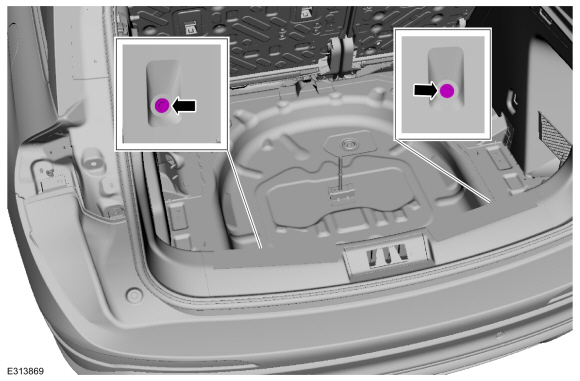

Remove the loadspace scuff plate trim panel bolts.
Torque:
9 lb.in (1 Nm)
-

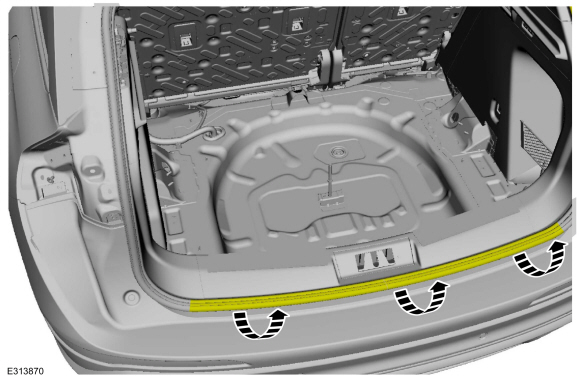

Position the liftgate opening weather strip aside.
-

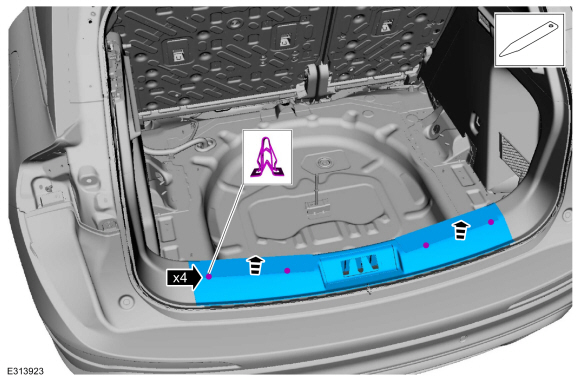

Release the clips and remove the loadspace scuff plate trim panel.
Use the General Equipment: Interior Trim Remover
Installation
-
To install, reverse the removal procedure.
