Lincoln Corsair: Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Module

Lincoln Corsair 2020-2023 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: This step is only necessary when installing a new component.

    NOTE: The PMI process must begin with the current hands free liftgate actuation module installed. If the current hands free liftgate actuation module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the hands free liftgate actuation module following the on-screen instructions.
  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove retainers.

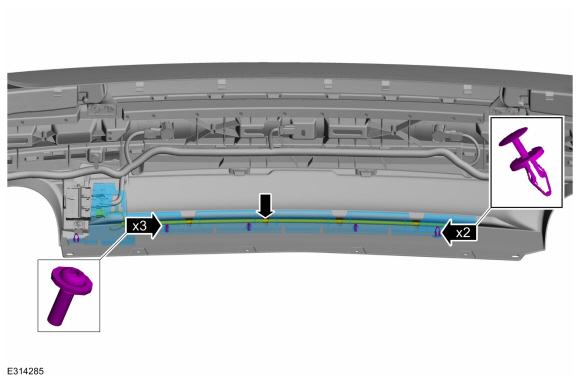

  1. Remove the push pins, the screws and the lower bumper cover bracket assembly. Position the hands-free liftgate actuation lower sensor aside.

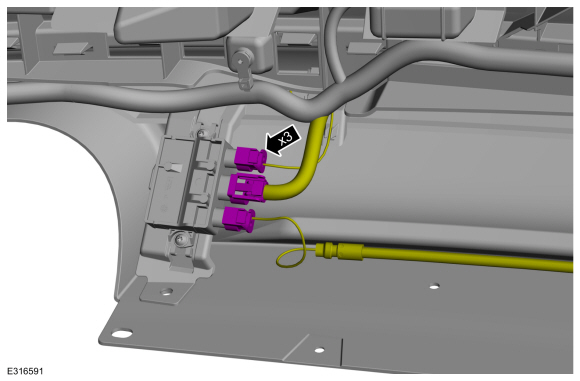

  1. Remove the electrical connectors.
  1. Remove the fasteners and hands free liftgate actuation module.

Installation

  1. To install, reverse the removal procedure.
  1. Using a diagnostic scan tool, complete the PMI process for the hands free liftgate actuation module following the on-screen instructions.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, perform a LIN new module initialization following the on-screen instructions.
