Lincoln Corsair: Exterior Trim and Ornamentation / Removal and Installation - Front Door Upper Moulding

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

All vehicles

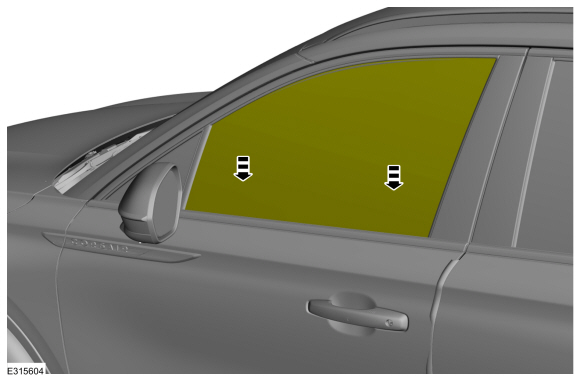

  1. Lower the door window glass completely.

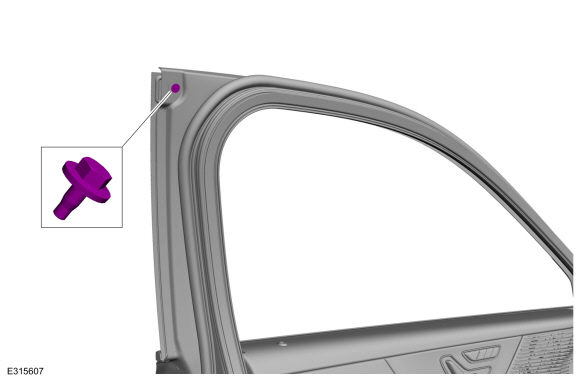

  1. Remove the upper belt moulding screw at front of the door.
    Torque: 10 lb.in (1.1 Nm)

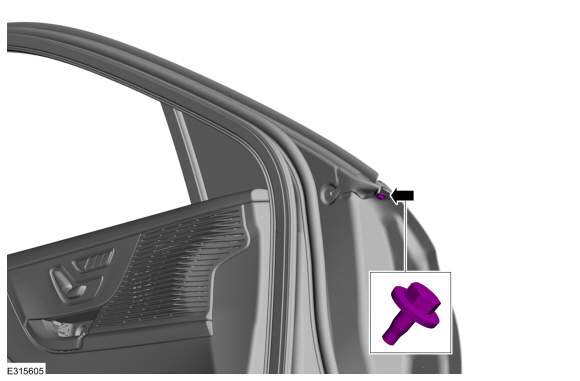

  1. Remove the upper belt moulding screw at rear of the door.
    Torque: 10 lb.in (1.1 Nm)

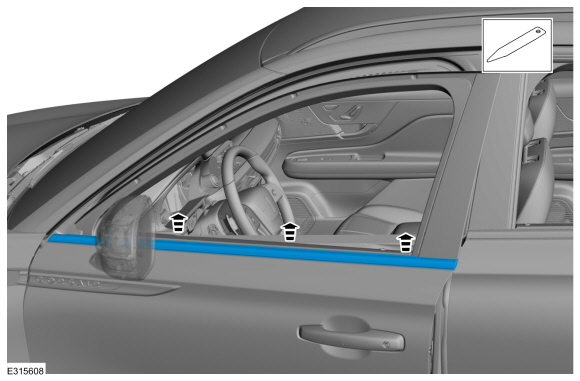

  1. Using a non-marring trim tool, disengage the moulding from the channel in the door and remove the moulding.

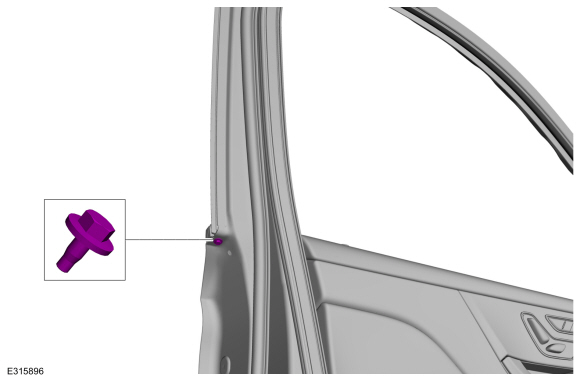

  1. Remove the upper belt moulding screw at front of the door.
  1. Remove the upper belt moulding screw at rear of the door.
    Torque: 10 lb.in (1.1 Nm)

Vehicles With: Keyless Vehicle System

  1. Remove the front door window regulator and motor
    Refer to: Front Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).

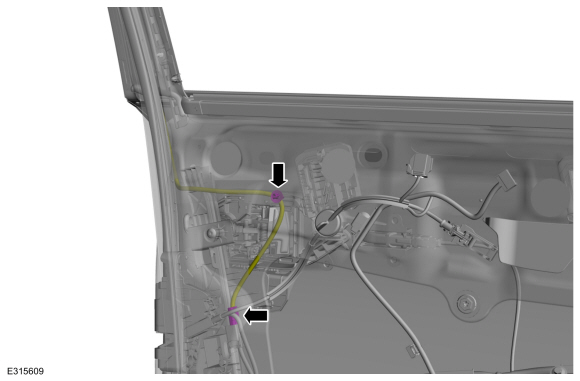

    1. Disconnect the electrical connector.
    1. Detach the wiring harness clip.

All vehicles

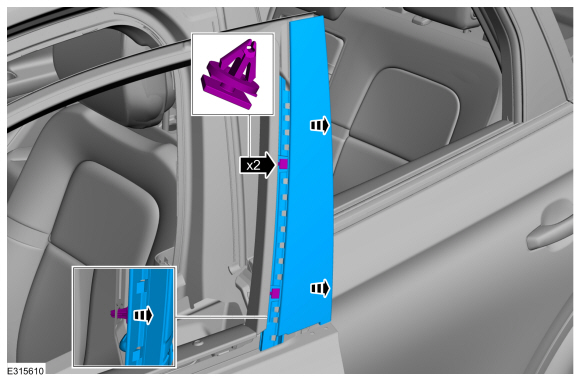

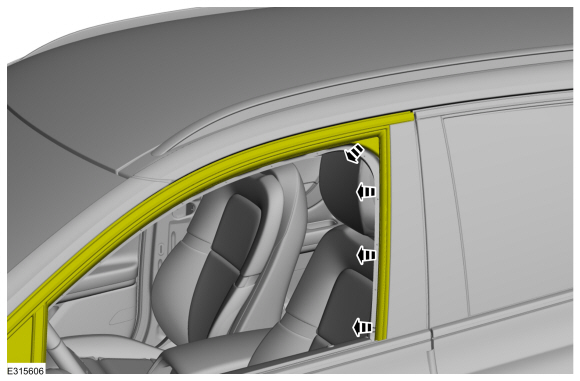

  1. NOTE: Standard front door upper moulding shown, keyless entry similar.

    • Remove the retainer clips and dislodge the 4way clip.
    • Remove the front door upper moulding.

Installation

  1. To install, reverse the removal procedure.
