Lincoln Corsair: Handles, Locks, Latches and Entry Systems / Removal and Installation - Front Door Lock Control Switch
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
-
Remove the driver door window control switch and bezel as an assembly.
-
Release the clips.
Use the General Equipment: Interior Trim Remover
-
Disconnect the driver door window control switch electrical connector.
-
Disconnect the front door lock control switch
electrical connector and remove the driver door window control switch
and bezel as an assembly.
-
NOTE:
This step is only necessary when installing a new component.

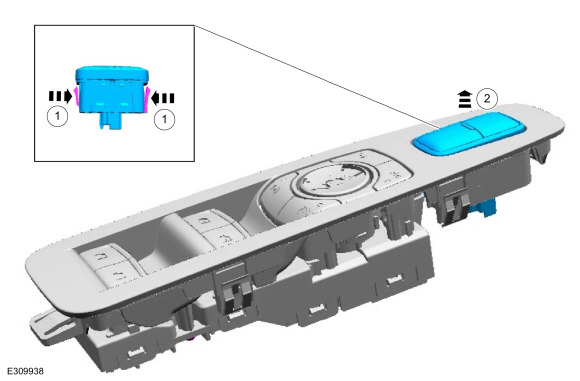

Remove the front door lock control switch.
-
Release the retaining clips.
-
Remove the front door lock control switch from the bezel assembly..
Installation
-
To install, reverse the removal procedure.
