Lincoln Corsair: Front End Body Panels / Removal and Installation - Fender Splash Shield

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

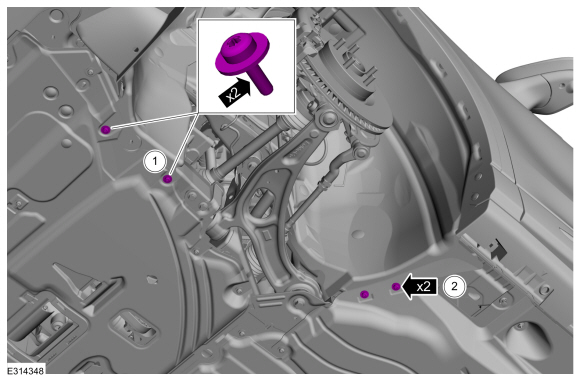

    1. Remove the bolts.
      Torque: 13 lb.in (1.5 Nm)
    1. Remove the bolts.
      Torque: 22 lb.in (2.5 Nm)

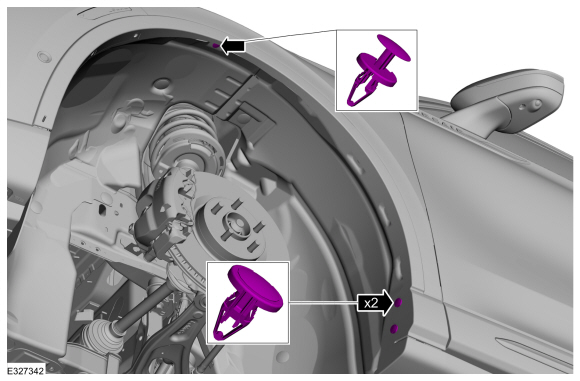

  1. Remove the retainers.

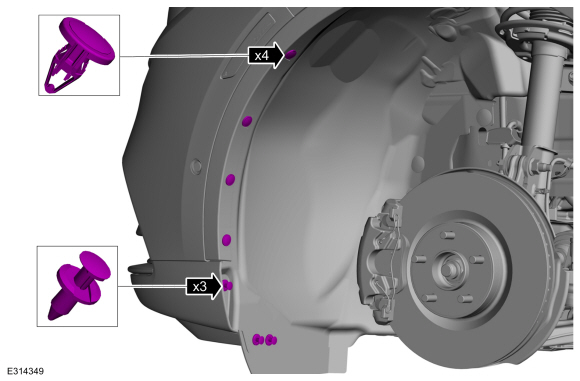

  1. Remove the retainers.
  1. Remove the front fender moulding.
    Refer to: Front Fender Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

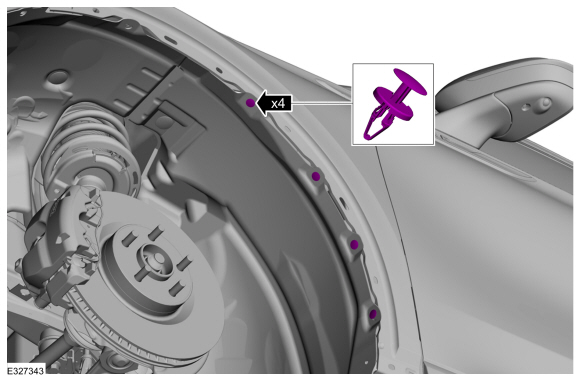

  1. Remove the retainers.

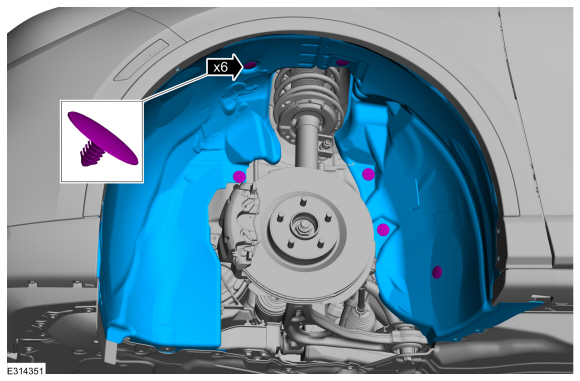

  1. Remove the trim pins and the fender splash shield.

Installation

  1. To install, reverse the removal procedure.
