Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Remove the charge port.
    Refer to: Charge Port - Plug-In Hybrid Electric Vehicle (PHEV) (414-03B High Voltage Battery Charging System, Removal and Installation).
  1. On both sides.
    Remove the push pins and the cowl filler panel.
  1. Remove the cowl panel grille.
    Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).
  1. Remove the headlamp assembly.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

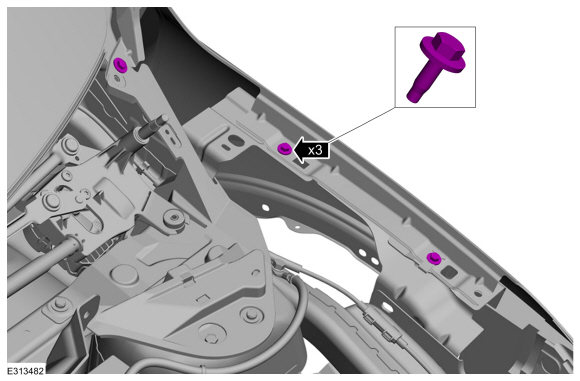

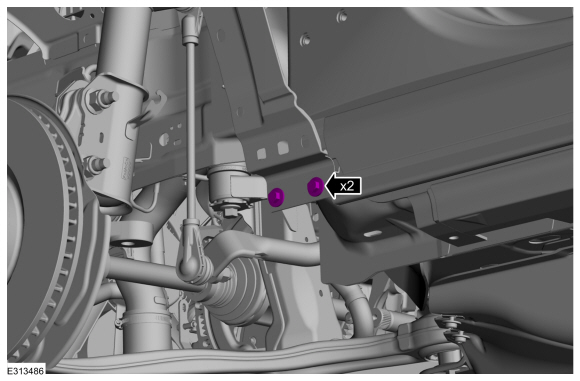

  1. Remove the bolts.
    Torque: 80 lb.in (9 Nm)
  1. Remove the front door.
    Refer to: Front Door (501-03 Body Closures, Removal and Installation).

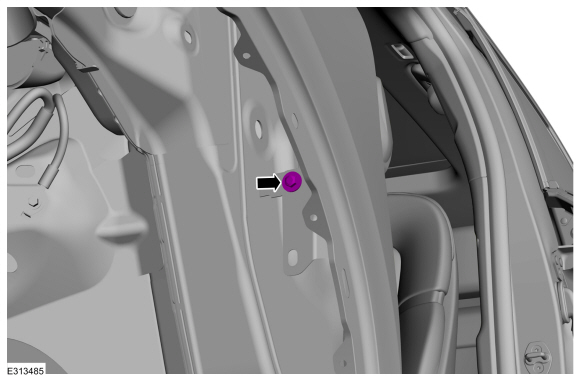

  1. Remove the bolt.
    Torque: 80 lb.in (9 Nm)

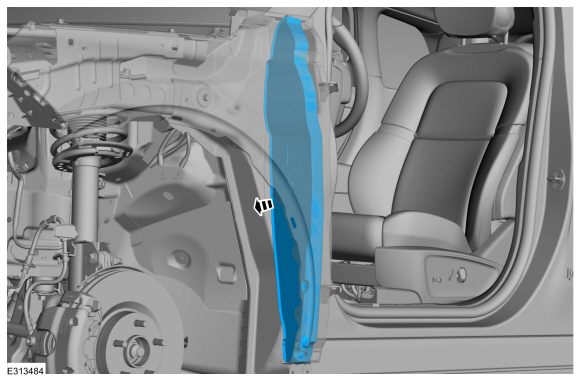

  1. Remove the fender baffle.

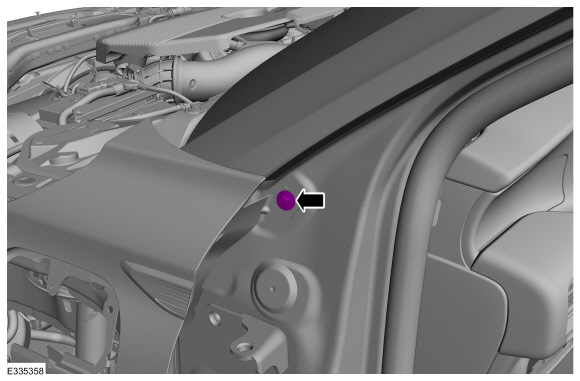

  1. Remove the bolt.
    Torque: 80 lb.in (9 Nm)

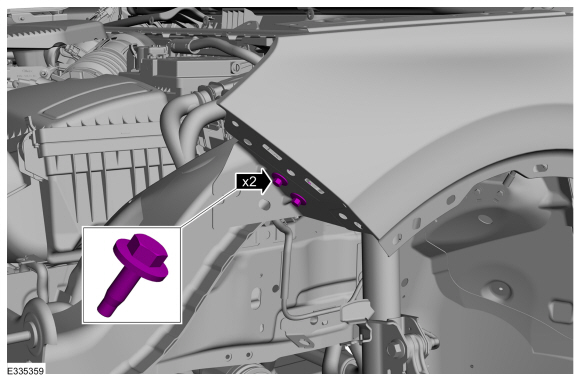

  1. Remove the bolts.
    Torque: 80 lb.in (9 Nm)
  1. Remove the bolts.
    Torque: 80 lb.in (9 Nm)

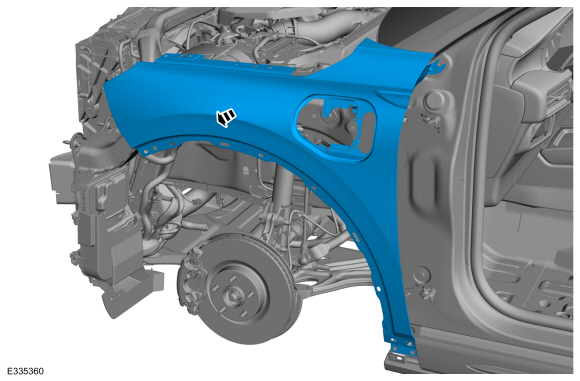

  1. Remove the fender.
  1. NOTE: This step is only necessary when installing a new component.

    If equipped.

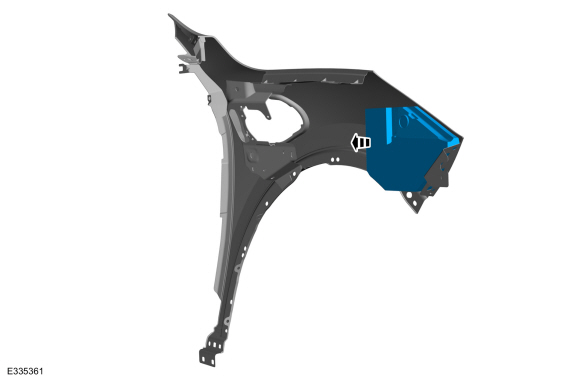

    Remove the fender insulation

Installation

  1. To install, reverse the removal procedure.
