Lincoln Corsair: Engine Emission Control - 2.0L EcoBoost (177kW/240PS) – MI4 / Removal and Installation - Exhaust Gas Recirculation (EGR) Back Pressure Sensor
Materials
Name |
Specification |
Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESA-M1C200-A ESE-M1C171-A
|
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
Do not pull the engine appearance cover forward or
sideways to remove. Failure to press straight upward on the underside of
the cover at the attachment points may result in damage to the cover or
engine components.
-

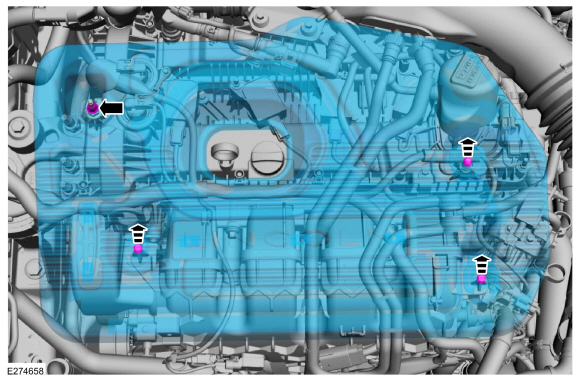

Remove the engine appearance cover nut.
-
Place your hand under the engine appearance cover at
each grommet location and push straight up to release each grommet from
the studs.
-
After all of the grommets have been released from the studs, remove the appearance cover from the engine.
-

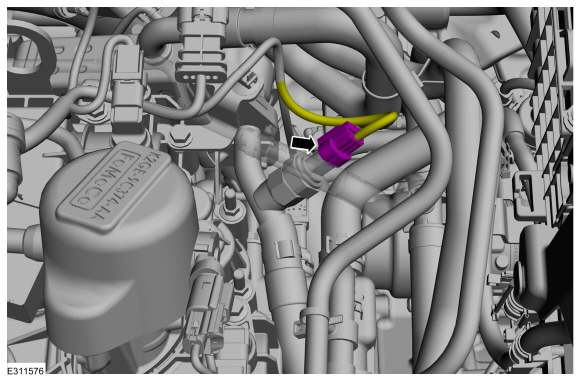

Disconnect the elcetrical connector.
-
NOTE:
When removing the sensor, use a suitable spanner on
both the sensor body and the sensor mounting boss, to prevent the
removal force from damaging the EGR tube.

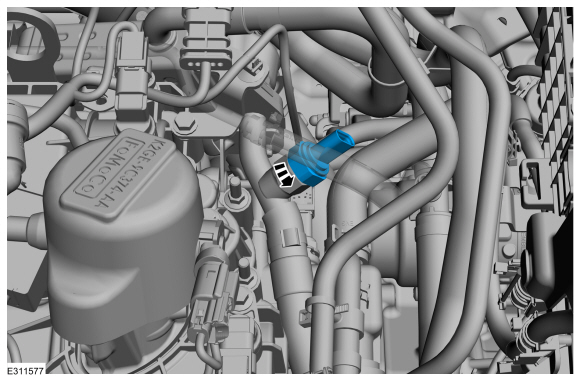

Remove the EGR back pressure sensor.
-

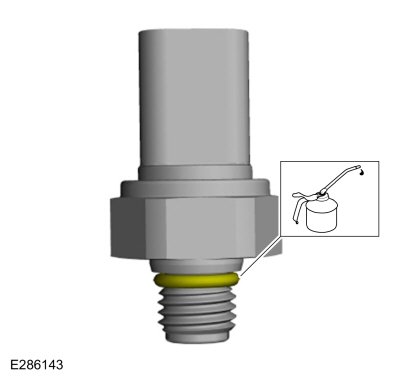

Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.
Installation
-
To install, reverse the removal procedure.
-
-
NOTE:
Lubricating the grommets with silicone grease
aids in the installation of the engine appearance cover, and any future
removal and installation of the cover.

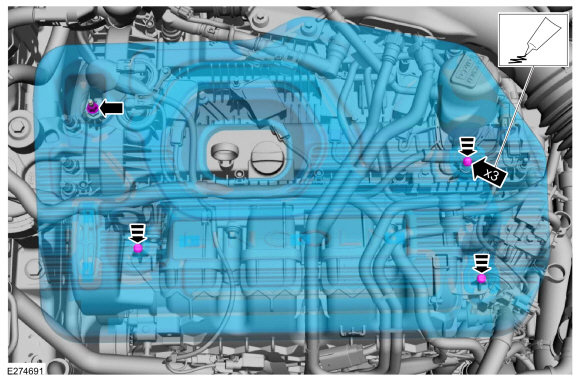

Lubricate each grommet with silicone grease.
Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound
/ XG-3-A
(ESA-M1C200-A)
(ESE-M1C171-A)
-
If the engine appearance cover stud bolt is loosened
or removed, it must be installed/tightened into the valve cover.
Torque:
62 lb.in (7 Nm)
-
Position the engine appearance cover onto the engine with the grommets aligned with the studs.
-
Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
-
Install the engine appearance cover nut.
Torque:
44 lb.in (5 Nm)
Materials
Name
Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A
ESA-M1C200-AESE-M1C171-A
Removal
NOTE:
Removal steps in this procedure may contain installation details...
Materials
Name
Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A
ESA-M1C200-AESE-M1C171-A
Removal
NOTE:
Removal steps in this procedure may contain installation details...
