Lincoln Corsair: Engine Emission Control - 2.0L EcoBoost (177kW/240PS) – MI4 / Removal and Installation - Crankcase Vent Oil Separator

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the intake manifold.
    Refer to: Intake Manifold (303-01A Engine - 2.0L EcoBoost (177kW/240PS) – MI4, Removal and Installation).
  1. Remove the crankcase vent oil separator bolts and then remove the crankcase vent oil separator.

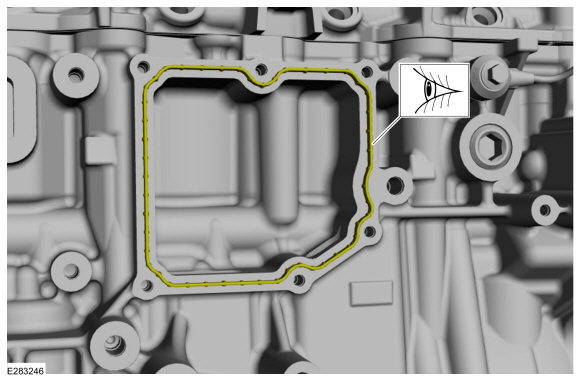

  1. Inspect the crankcase vent oil separator gasket.

Installation

  1. Install the crankcase vent oil separator and tighten in the sequence shown.
    Torque: 97 lb.in (11 Nm)
