Lincoln Corsair: Front End Body Panels / Removal and Installation - Cowl Panel Grille

Removal

  1. Remove the windshield wiper pivot arm.
    Refer to: Windshield Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).
  1. If equipped.
    Remove the push nuts and the cowl panel grille insulation panel.

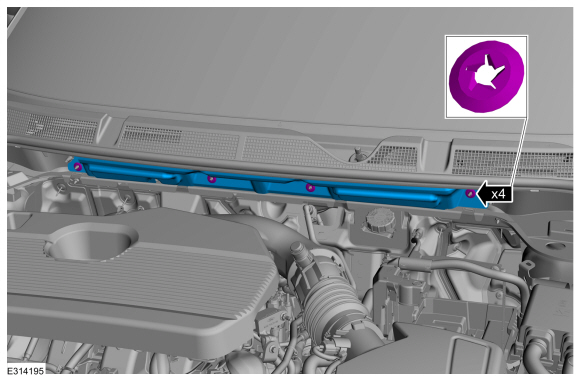

    1. Remove the clips.
    1. Release the tabs and remove the cowl panel grille.

Installation

  1. To install, reverse the removal procedure.
