Lincoln Corsair: Body Closures / General Procedures - Liftgate Alignment
Special Tool(s) /
General Equipment
Inspection
-
Inspect the body-to-liftgate door dimensions.
-

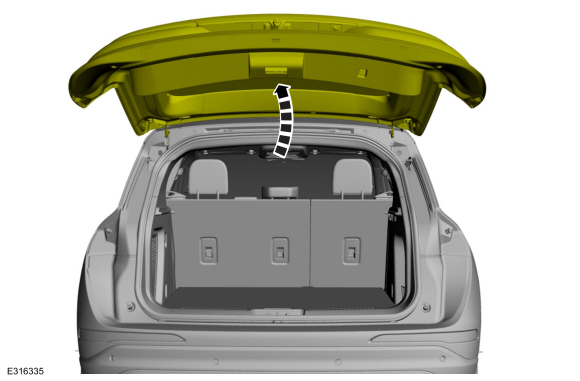

Open the liftgate.
-
Position aside the liftgate opening weather strip.
-

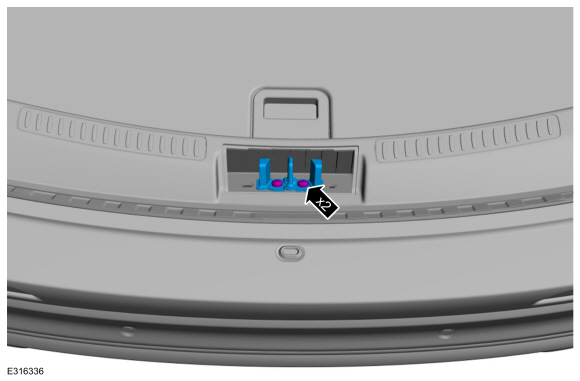

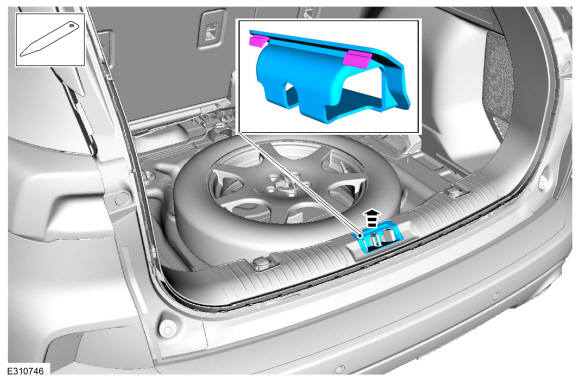

Release the tabs and remove the liftgate striker cover.
Use the General Equipment: Interior Trim Remover
-
Remove the fasteners and liftgate striker.
Torque:
18 lb.ft (25 Nm)

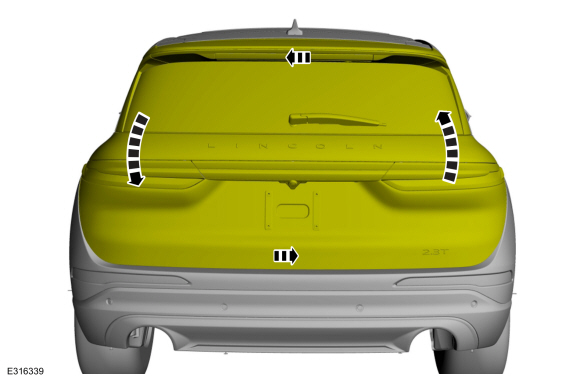

Liftgate left and right, up and down alignment
-

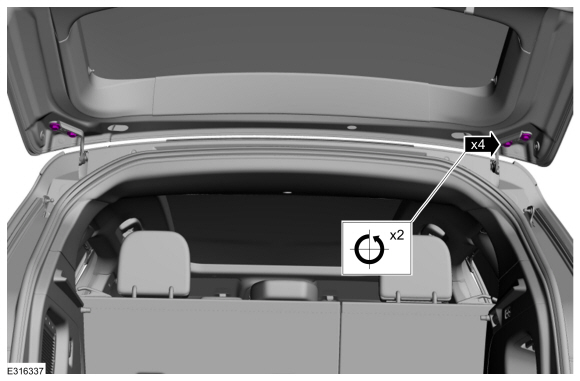

Loosen the bolts to permit movement of the liftgate.
Loosen:
:
2 turn(s)
-
Carefully close the liftgate.
-

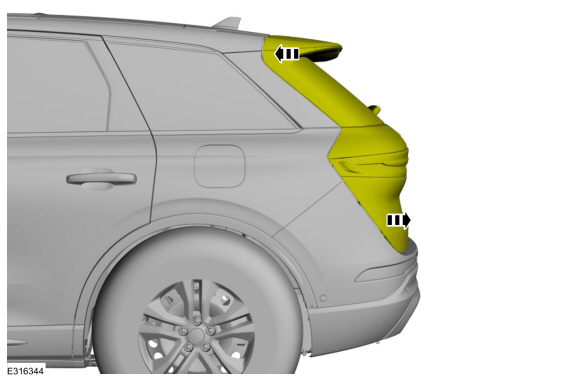

Adjust the liftgate as required.
-
Carefully open the liftgate.
-
Tighten the fasteners.
Torque:
22 lb.ft (30 Nm)
Liftgate in and out alignment
-

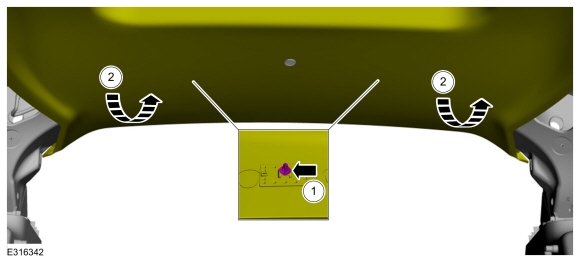

Adjust the stops.
-
Adjust the stops.
-

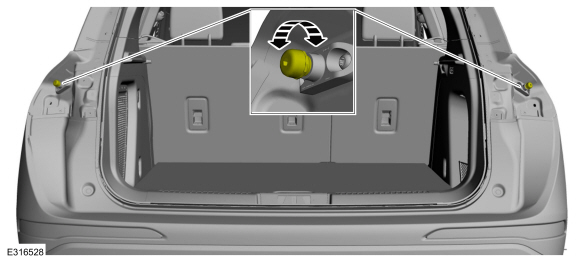

Remove the reatainers and liftgate hinge cover.
-
Remove the D-pillar trim panel.
Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-
Release the clips.
-
Lower the rear headliner.
-

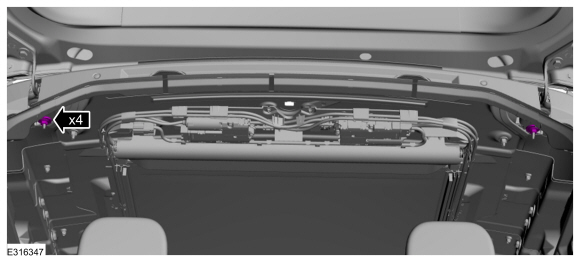

Loosen the bolts to permit movement of the liftgate.
Loosen:
:
2 turn(s)
-

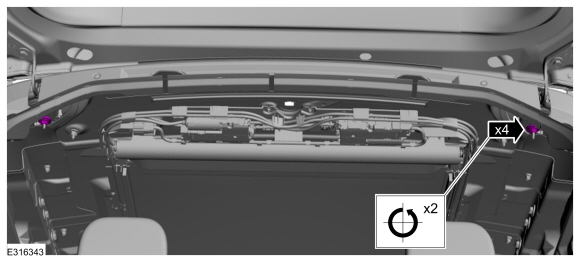

Adjust the liftgate as required.
-
Tighten the fasteners.
Torque:
22 lb.ft (30 Nm)
-
-
Attach the clips.
-
Position back the rear headliner.
-
Install the D-pillar trim panel.
Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

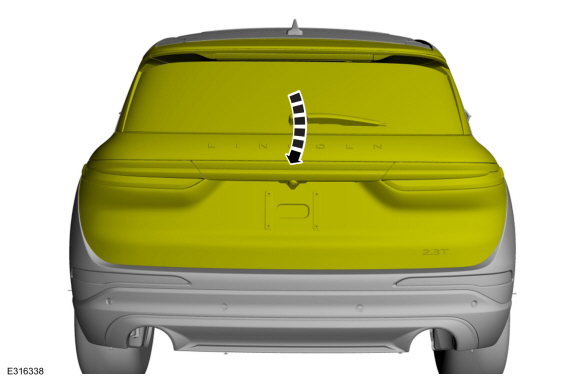

Carefully close the liftgate.
Adjustment
-
Use a piece of papers to verify the contact between overslam bumpers and wedges with the lift gate inner.
-
After operation check the alignment and correct if necessary.
All alignments
-
Inspect the liftgate door-to-body dimensions.
-
Install the removed components.
Power Liftgate
-
If equipped, carry out the power liftgate initialization.
Refer to: Power Liftgate Initialization (501-03 Body Closures, General Procedures).
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
Inspect the hood-to-body dimensions.
All alignments
Open the hood...
Programming
NOTE:
This procedure clears and then sets new open and close end points in the RGTM memory.
Turn the ignition ON.
Using a scan tool perform the RGTM self test to complete power liftgate
initialization...
