Lincoln Corsair: Glass, Frames and Mechanisms / General Procedures - Fixed Glass

Special Tool(s) / General Equipment

Power Caulk Gun
Power Fixed Glass Removal Tool
Cold Knife
Knife
Vacuum Cleaner

Materials

Name Specification
Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express -

Sika Tack ASAP Urethane Adhesive -

Motorcraft® Ultra-Clear Spray Glass Cleaner
ZC-23
ESR-M14P5-A

Sika Tack® MOVE.IT -

Sika® Aktivator PRO / Dow® BETAPRIME™ 5504G / Sika® Primer-207 -


Repair

All vehicles

  1. NOTE: Some interior trim, exterior trim and/or components may require removal based on the tools and removal method used.

    NOTE: In some instances repair methods may be combined to achieve the best results.

    NOTE: If any of the following conditions exist, the fixed glass must be discarded. A new fixed glass is required.

    • The fixed glass is the windshield and equipped with Advanced Head Up Display (AHUD).
    • The fixed glass is the windshield glass and equipped with a camera bracket.
    • The fixed glass is the windshield glass and equipped with adhesive mouldings.
    • The fixed glass is RIM encapsulated.
    Choose the best repair method for the type of glass being replaced.
    1. Cold knife method – uses the cold knife to cut the urethane from the outside of a vehicle provided the blade can reach the bead.
      Use the General Equipment: Cold Knife
    1. Power tool method – uses various power tools from inside the vehicle using a cutting or paddle type blade.
      Use the General Equipment: Power Fixed Glass Removal Tool
    1. Piano wire method – uses the piano wire to cut the urethane from inside and outside of a vehicle using an assistant.
  1. When using the cold knife method, apply tape to protect the perimeter of the window opening from paint damage. Multiple layers of tape may be required.


  1. NOTICE: New or reused fixed glass must be installed within 2 hours of cutting the urethane adhesive. Exposed cut surfaces of urethane become oxidized and inactive beyond 2 hours, reducing the effectiveness of the repair bond.

    NOTICE: To avoid rust formation, use extreme care not to scratch the paint or primer or damage the pinch weld during glass removal.

    NOTICE: Take precautions to prevent damage to other components when cutting urethane.

    NOTE: If any of the following conditions exist, the fixed glass must be discarded. A new fixed glass is required.

    • The fixed glass is the windshield and equipped with Advanced Head Up Display (AHUD).
    • The fixed glass is the windshield glass and equipped with a camera bracket.
    • The fixed glass is the windshield glass and equipped with adhesive mouldings.
    • The fixed glass is RIM encapsulated.

    NOTE: Fixed glass may have locating pins that vary in location. It may be necessary to cut these pins with a utility knife.

    Remove the fixed glass.
    Use the General Equipment: Power Fixed Glass Removal Tool
    Use the General Equipment: Cold Knife
    Use the General Equipment: Knife


  1.   WARNING: Repair any corrosion found on the pinch weld. The pinch weld is a structural component of the vehicle. Corrosion left unrepaired may reduce the structural integrity of the vehicle. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    NOTICE: New or reused fixed glass must be installed within 2 hours of cutting the urethane adhesive. Exposed cut surfaces of urethane become oxidized and inactive beyond 2 hours, reducing the effectiveness of the repair bond.

    NOTE: Avoid scratching the pinch weld. Repair all minor scratches or exposed metal on the pinch weld following manufacturer's instructions for the product being used. Use the same brand primer and urethane adhesive. (except for RIM encapsulated rear window glass on vehicles without panoramic roof).

    NOTE: Touching the adhesive surface impairs the rebonding.

    NOTE: Make sure the mating surfaces are clean and free of foreign material.

    NOTE: If equipped with Advanced Head Up Display (AHUD) and replacing the windshield glass, it must have locating pins and spacers to ensure correct alignment. Do not use a replacement windshield glass, without locating pins and spacers.

    NOTE: If replacing the windshield glass and equipped with a camera bracket, it must have locating pins and spacers to ensure correct alignment. Do not use a replacement windshield glass, without locating pins and spacers.

    Prep the pinch weld area to install the new or reused fixed glass.
    1. Trim or shave down the original urethane adhesive on pinch weld flange and on glass (if reused) using a utility knife, leaving a 1 mm to 2 mm (0.04 in to 0.08 in) base on the parts, only when final installation is within 2 hours.
    1. Remove any foreign material or dirt from the pinch weld using a soft brush or vacuum.
      Use the General Equipment: Vacuum Cleaner
  1. NOTE: Minimize applying primer over areas with remaining urethane adhesive and observe a minimum flash time of 10 minutes.

    If the paint layer was damaged on the pinch weld extending into bare metal, apply primer to those areas only.
    Material: Sika® Aktivator PRO / Dow® BETAPRIME™ 5504G / Sika® Primer-207
  1. NOTE: Minimize applying primer over areas with remaining urethane adhesive and observe a minimum flash time of 10 minutes.

    Apply primer as necessary.
    1. Apply primer to those areas only previously primed with primer.
      Material: Sika® Aktivator PRO / Dow® BETAPRIME™ 5504G / Sika® Primer-207
    1. If the clearcoat layer was damaged on the pinch weld but not extending into bare metal, apply primer to those areas only.
      Material: Sika® Aktivator PRO / Dow® BETAPRIME™ 5504G / Sika® Primer-207

Vehicles with RIM encapsulated glass

  1. Clean the inside of the rear window glass encapsulation rim surface with alcohol-free cleaner, making sure the ceramic coated area is clean. Allow five minutes to dry.


  1. Apply primer to the RIM encapsulation according to the manufacturer's instructions to the new fixed glass. Allow at least 10 minutes to dry.
    Material: Sika® Aktivator PRO / Dow® BETAPRIME™ 5504G / Sika® Primer-207

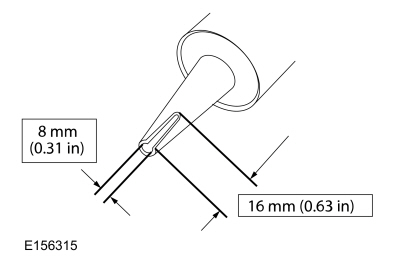

  1. Cut the urethane adhesive applicator tip to specification.
    Material: Sika Tack® MOVE.IT


  1. NOTICE: Make sure the urethane bead is uniform to prevent air and water leaks.

    NOTE: The fixed glass must be installed within 10 minutes of applying the urethane adhesive.

    NOTE: Use a power caulk gun that applies the urethane adhesive with less effort and a continuous bead.

    Apply a urethane adhesive bead.
    1. Start and end at the original overlap points to prevent air and water leaks.

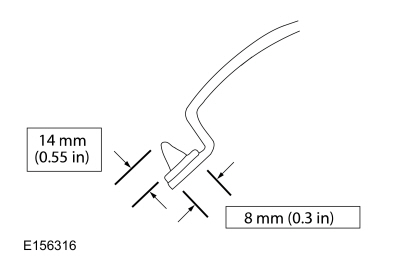

    1. Apply a urethane adhesive bead 14 mm (0.551 in) high and 8 mm (0.314 in) wide on top of the existing trimmed urethane adhesive bead on the pinch weld.
      Use the General Equipment: Power Caulk Gun
      Material: Sika Tack® MOVE.IT
    1. Make sure there are no gaps in the bead.

Vehicles without RIM encapsulated glass

  1. NOTE: This step only applies when installing a new fixed glass.

    Clean the inside of the new fixed glass with glass cleaner.
    Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)


  1. NOTE: This step only applies when installing a new fixed glass.

    Apply primer according to the manufacturer's instructions to the new fixed glass. Allow at least 10 minutes to dry.
    Material: Sika® Aktivator PRO / Dow® BETAPRIME™ 5504G / Sika® Primer-207
  1. NOTE: This step only applies to reusable fixed glass.

    Visually inspect and remove remaining urethane adhesive from the glass leaving a thin layer to bond with the new urethane adhesive bead.


  1. NOTE: This step only applies to reusable fixed glass.

    Apply primer according to the manufacturer's instructions to the fixed glass anywhere the urethane adhesive was completely removed. Allow at least 10 minutes to dry.
    Material: Sika® Aktivator PRO / Dow® BETAPRIME™ 5504G / Sika® Primer-207


  1. Cut the urethane adhesive applicator tip to specification.
    Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express
    Material: Sika Tack ASAP Urethane Adhesive


  1. NOTICE: Make sure the urethane bead is uniform to prevent air and water leaks.

    NOTE: The fixed glass must be installed within 10 minutes of applying the urethane adhesive.

    NOTE: Use a power caulk gun that applies the urethane adhesive with less effort and a continuous bead.

    Apply a urethane adhesive bead.
    1. Start and end at the original overlap points to prevent air and water leaks.
    1. Apply a urethane adhesive bead 14 mm (0.551 in) high and 8 mm (0.314 in) wide on top of the existing trimmed urethane adhesive bead on the pinch weld.
      Use the General Equipment: Power Caulk Gun
      Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express
      Material: Sika Tack ASAP Urethane Adhesive
    1. Make sure there are no gaps in the bead.

All vehicles

  1. NOTICE: The door windows must be left open during the adhesive curing time.

    Open the vehicle windows to prevent the air pressure of closing doors from compromising the urethane adhesive bond.


  1.   WARNING: Improper curing of the urethane adhesive may adversely affect glass retention, which is important for restraint system performance during a crash. Carefully follow the urethane adhesive manufacturer's curing instructions. Do not drive the vehicle until the urethane adhesive seal has cured. Failure to follow these instructions may result in serious injury to vehicle occupant(s) during a crash.

    NOTE: If equipped, the adhesive strip backings must be removed from the A-pillar mouldings before installing the fixed glass.

    NOTE: If equipped with Advanced Head Up Display (AHUD) and replacing the windshield glass, it must have locating pins and spacers to ensure correct alignment. Do not use a replacement windshield glass, without locating pins and spacers.

    NOTE: If replacing the windshield glass and equipped with a camera bracket, it must have locating pins and spacers to ensure correct alignment. Do not use a replacement windshield glass, without locating pins and spacers.

    NOTE: If equipped with Advanced Head Up Display (AHUD) and replacing the windshield glass, make sure the gap from the windshield to A-pillar is 2.5mm (0.098 in) to maximum of 5.5mm (0.216 in) on each side.

    Install the fixed glass to the vehicle.
    1. Install the fixed glass, pressing firmly by hand to ensure a good bond.
    1. Secure the fixed glass in the correct position with tape until the urethane adhesive has cured.
  1. If necessary, remove excess uncured urethane adhesive from the interior and exterior surface of the fixed glass.
    Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)
  1. Install any removed components as needed.
  1. If equipped, carry out the IPMA (image processing module A) camera alignment.
    Refer to: Lane Keeping System (419-07) .
  1. If equipped with Advanced Head Up Display (AHUD) and the windshield was replaced, carry out the Advanced Head Up Display (AHUD) Module calibration.
    Refer to: Head Up Display (HUD) Module Calibration (419-03 Collision Warning and Collision Avoidance System) .
