Lincoln Corsair: Engine Emission Control - 2.0L EcoBoost (177kW/240PS) – MI4 / Description and Operation - Engine Emission Control - Component Location
EGR system
Item |
Description |
1 |
EGR cooler to EGR valve tube.
|
2 |
EGR cooler.
|
EGR system
Item |
Description |
1 |
EGR valve.
|
2 |

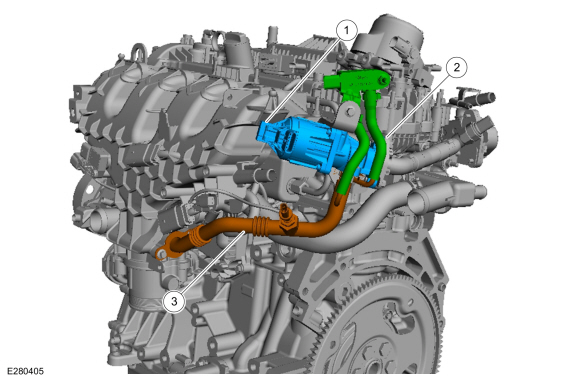

Differential pressure feedback EGR sensor.
|
3 |
EGR outlet tube.
|
Crankcase vent oil separator
Item |
Description |
1 |
Crankcase vent oil separator.
|
System Operation
Exhaust Gas Recirculation (EGR) Systems
The EGR system controls the NOX
emissions. Small amounts of exhaust gases are recirculated back into
the combustion chamber to mix with the air to fuel charge...
