Lincoln Corsair: Wipers and Washers / Removal and Installation - Windshield Wiper Pivot Arm

Lincoln Corsair 2020-2026 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Removal and Installation - Windshield Wiper Pivot Arm

Special Tool(s) / General Equipment

Two Leg Puller

Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

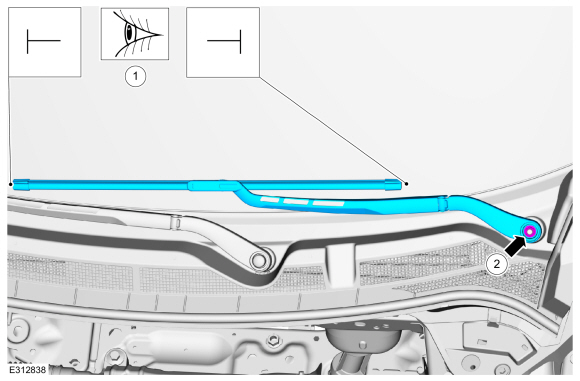

  1. Remove the windshield wiper pivot arm nut cover.
  1. Remove the windshield wiper pivot arm nut.

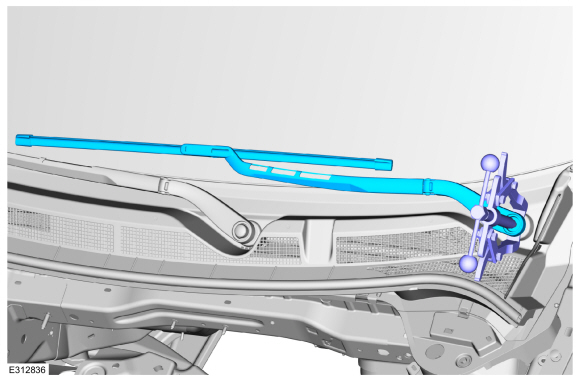

  1. Remove the windshield wiper pivot arm.
    Use the General Equipment: Two Leg Puller

Installation


  1. Verify the windshield wiper motor is in the PARK position.
    1. Turn the ignition ON.
    1. Pull the switch down to cycle the windshield wiper motor.
    1. Turn the ignition OFF.
    1. Align the wiper blade with the marks on the windshield.

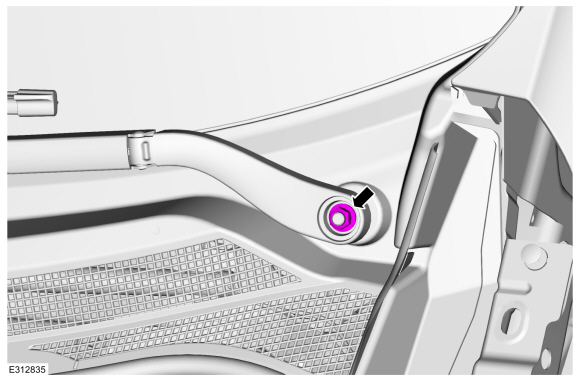

    1. Install the wiper pivot arm nut.
      Torque: 18 lb.ft (25 Nm)
  1. Install the windshield wiper pivot arm nut cover.
