Lincoln Corsair: Automatic Transmission External Controls - 8-Speed Automatic Transmission – 8F35/8F40 / Removal and Installation - Gear Shift Module (GSM)

Lincoln Corsair 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission External Controls - 8-Speed Automatic Transmission – 8F35/8F40 / Removal and Installation - Gear Shift Module (GSM)

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

Remove the FCIMB .
Refer to: Front Controls Interface Module B (FCIMB) (415-00 Information and Entertainment System - General Information, Removal and Installation).

Release the clips and remove the GSM finish panel.
Use the General Equipment: Interior Trim Remover

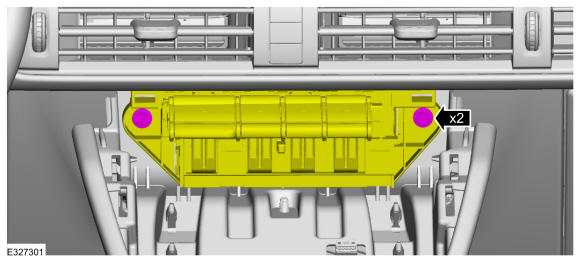

Remove the screws and the GSM .

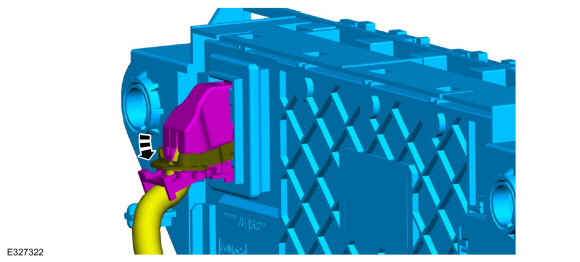

Disconnect the GSM electrical connector.

Installation

Connect the GSM electrical connector.

Install the GSM and the screws.

Install the GSM finish panel.

Install the FCIMB .
Refer to: Front Controls Interface Module B (FCIMB) (415-00 Information and Entertainment System - General Information, Removal and Installation).

If a new GSM was installed, verify the calibration is at the latest level.
Refer to: Module Programming (418-01 Module Configuration, General Procedures).
