Lincoln Corsair: Front Disc Brake / Removal and Installation - Front Brake Flexible Hose

Lincoln Corsair 2020-2023 Service Manual / Chassis / Brake System / Front Disc Brake / Removal and Installation - Front Brake Flexible Hose

Removal

  WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers. Put the brake system into service mode prior to servicing or removing any brake components. Failure to follow this instruction may result in serious personal injury.

NOTICE: Make sure that all openings are sealed.

NOTICE: Make sure that the brake hose is not twisted and is correctly located.

NOTE: Removal steps in this procedure may contain installation details.

  1. Activate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).
  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

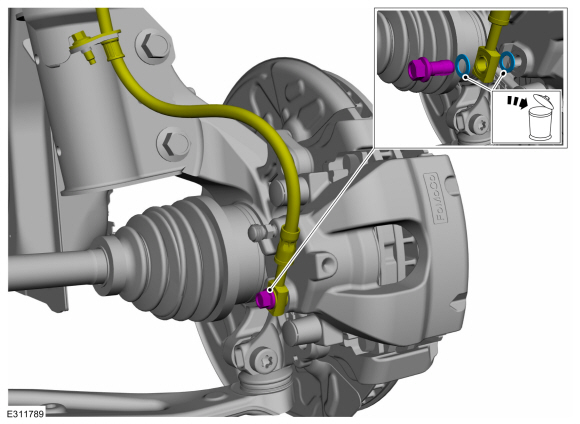

  1. NOTICE: Make sure that all openings are sealed.

    NOTICE: Take extra care not to damage the mating faces.

    NOTICE: Make sure that the brake hose is not twisted and is correctly located.

    Remove the bolt and disconnect the brake hose. Discard the washers.
    Torque: 30 lb.ft (40 Nm)

    1. Remove the brake flexible hose bracket bolt.
      Torque: 97 lb.in (11 Nm)
    1. Disconnect the brake tube fitting and
      Torque: 159 lb.in (18 Nm)
    1. Remove the brake hose clip and the brake flexible hose.

Installation

  1. To install, reverse the removal procedure.
  1. Deactivate the brake service mode.
    Refer to: Brake Service Mode Activation and Deactivation (206-00 Brake System - General Information, General Procedures).
  1. Bleed the brake system.
    Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).
