Lincoln Corsair: Evaporative Emissions - 2.0L EcoBoost (177kW/240PS) – MI4 / Removal and Installation - Evaporative Emission Canister Ventilation Filter
Removal
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of
any type when working on or near any fuel-related component. Highly
flammable mixtures may be present and may be ignited. Failure to follow
these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell
phones, pagers or audio equipment of any type when working on or near
any fuel-related component. Highly flammable mixtures may be present and
may be ignited. Failure to follow these instructions may result in
serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery
when working on an evaporative emission (EVAP) system or fuel-related
component. Highly flammable mixtures may be present and may be ignited.
Failure to follow these instructions may result in serious personal
injury.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the EVAP canister.
Refer to: Evaporative Emission Canister (303-13A Evaporative Emissions -
2.0L EcoBoost (177kW/240PS) – MI4, Removal and Installation).
-

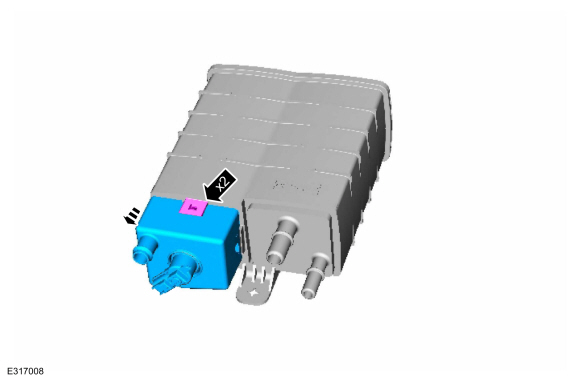

Release the tabs and remove EVAP canister ventilation filter.
Installation
-
To install, reverse the removal procedure.
Materials
Name
Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric CompoundXG-3-A
ESA-M1C200-AESE-M1C171-A
