Lincoln Corsair: Keyless Entry / Locking and Unlocking the Doors Using Keyless Entry

Lincoln Corsair 2020-2024 Owners Manual / Keyless Entry / Locking and Unlocking the Doors Using Keyless Entry

Unlocking the Doors

Enter the factory-set five-digit code or your personal code. You must press each number within five seconds of each other. The interior lamps illuminate.

Note: All doors unlock if you disable the two-stage unlocking feature.

To disable the two-stage unlocking feature:

  1. Switch the ignition on using an admin key.
  2. Using the information display controls on the steering wheel, select Settings.
  3. Select Vehicle Settings.
  4. Select Locks.
  5. Press and hold the OK button until a confirmation message appears in the information display.
  6. Switch the ignition off.

To Unlock All Doors

Enter the factory-set code or your personal code, then press the 3·4 control within five seconds.

To Release the Liftgate (If Equipped)

Enter the factory-set code or your personal code, then press the 5·6 control within five seconds.

Unlocking Using Passive Key

Lincoln Corsair. Locking and Unlocking the Doors Using Keyless Entry

With your passive key within 3 ft (1 m) of your vehicle, touch the unlock sensor on the back of the door handle for a brief period and then pull on the door handle to unlock, being careful not to touch the lock sensor at the same time or pull on the door handle too quickly. The intelligent access system requires a brief delay to authenticate your passive key.

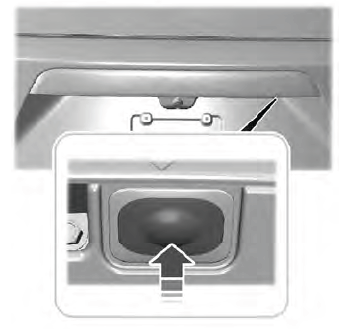

Using the Power Liftgate with Passive Key (If Equipped)

Lincoln Corsair. Locking and Unlocking the Doors Using Keyless Entry

With your passive key within 3 ft (1 m) of your vehicle, press the exterior liftgate release button inside of the liftgate handle. The liftgate unlocks and opens.

Locking the Doors

Press and hold 7·8 and 9·0 at the same time with the driver door closed. You do not need to enter the keypad code first.

Locking Using Passive Key

Lincoln Corsair. Locking and Unlocking the Doors Using Keyless Entry

With your intelligent access key within 3 ft (1 m) of your vehicle, touch the outer door handle lock sensor for approximately one second to lock, being careful to not touch the unlock sensor on the back of the door handle at the same time. After locking, you can immediately pull on the door handle to confirm locking occurred without inadvertently unlocking.

Note: Do not use the outside door handle as a roof cargo strap.

    Keyless Entry Settings

    Switching Keyless Entry On and Off Switch the ignition on using an admin key. Using the information display controls on the steering wheel, select Settings...

    Keyless Entry – Troubleshooting

    Keyless Entry – Frequently Asked Questions Why does the keypad not accept the access code? If you enter the access code too fast on the keypad, the unlock function may not work...
