Lincoln Corsair: Wipers and Washers / General Procedures - Washer Hose Repair
Repair
NOTE:
This procedure may be carried out on rubber hoses only. If a
plastic washer hose is damaged, a new washer hose must be installed.
-
Locate and verify the damaged washer hose.
-

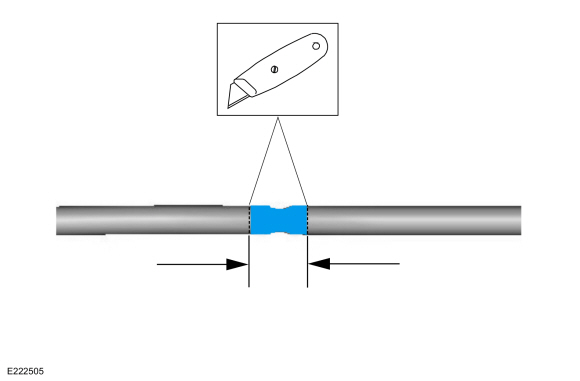

Cut the hose cleanly and remove the damaged portion of the washer hose.
Dimension:
0.5000
in (
12.7
mm)
-
Install a windshield washer hose adapter between the cut ends of the hose.
-
NOTE:
In difficult cases, clamping may be required.
If necessary, install a segment of 6.4 mm (0.25 in) ID
black rubber hose over the ends of the washer hose and clamp both ends
of the rubber hose using spring clamps.
