Lincoln Corsair: Climate Control / Automatic Climate Control

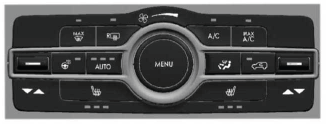

Lincoln Corsair. Automatic Climate Control

Note: Depending on your vehicle option package, the controls may look different from what you see here.

Note: You can switch temperature units between Fahrenheit and Celsius.

Note: For hybrid vehicles, the air conditioning compressor may run and airflow can be felt when the climate control is off providing cooling to the battery.

Note: You can control some of the climate features using the touchscreen.

Accessing the Air Distribution Controls

Lincoln Corsair. Automatic Climate Control Press and release the button to activate the selection screen.

From the screen, you can direct air to the windshield, instrument panel or footwell vents on or off. You can direct air through any combination of these vents.

Accessing the Climate Control Menu

Lincoln Corsair. Automatic Climate Control Press and release the button to access additional controls for the front climate system.

Setting the Blower Motor Speed

Lincoln Corsair. Automatic Climate Control Turn the control to adjust the volume of air circulating in your vehicle.

Setting the Temperature

Lincoln Corsair. Automatic Climate Control Press the toggle button on the left-hand side of the climate control upward or downward to set the left-hand side temperature.

Note: This control also adjusts the right-hand side temperature when you switch off dual zone mode.

Press the toggle button on the right-hand side of the climate control upward or downward to set the right-hand side temperature.

Switching Auto Mode On and Off

Lincoln Corsair. Automatic Climate Control Press and release the button to switch on automatic operation. Repeatedly press the button to adjust auto mode.

The system adjusts the blower motor speed, air distribution, air conditioning operation, and outside or recirculated air to reach and maintain the temperature you have set.

Adjust the blower motor control to turn auto mode off.

Note: The system starts at the previous setting when you switch on auto mode.

Note: You can also switch off dual zone mode by pressing and holding the button for more than two seconds.

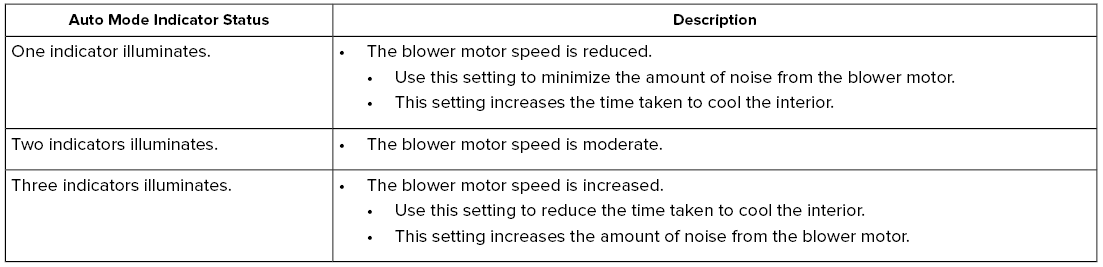

Auto Mode Indicator Status

Lincoln Corsair. Automatic Climate Control

Switching the Air Conditioning On and Off

Lincoln Corsair. Automatic Climate Control Press and release the button.

Use air conditioning with recirculated air to improve cooling performance and efficiency.

Note: In certain conditions, such as maximum defrost, the air conditioning compressor may continue to operate even though you switch off the air conditioning.

Switching the Climate Control On and Off

Lincoln Corsair. Automatic Climate Control Press and release the button.

Note: Your vehicle may not have a physical button. You can use the touchscreen to turn the climate control on and off.

Switching Maximum Air Conditioning On and Off

Lincoln Corsair. Automatic Climate Control Press and release the button for maximum cooling.

The left-hand and right-hand settings set to LO, recirculated air flows through the instrument panel air vents, air conditioning turns on and the blower motor adjusts to the highest speed.

Switching Maximum Defrost On and Off

Lincoln Corsair. Automatic Climate Control Press and release the button for maximum defrosting.

The left-hand and right-hand temperatures are set to HI, air flows through the windshield air vents, and the blower motor adjusts to the highest speed.

You can also use this setting to defog and clear the windshield of a thin covering of ice.

Note: To prevent window fogging, you cannot select recirculated air when maximum defrost is on.

Note: The heated rear window also turns on when you select maximum defrost.

Switching Recirculated Air On and Off

Lincoln Corsair. Automatic Climate Control Press and release the button to switch between outside air and recirculated air.

The air currently in the passenger compartment recirculates. This may reduce the time needed to cool the interior, when used with air conditioning, and reduce unwanted odors from entering your vehicle.

Note: Recirculated air may turn off, or prevent you from switching on, in all air flow modes except maximum air conditioning to reduce the risk of fogging. Recirculation may also turn on and off in various air distribution control combinations during hot weather to improve cooling efficiency.

    Climate Control

    ..

    Hints on Controlling the Interior Climate

    General Hints Note: Prolonged use of recirculated air may cause the windows to fog up. Note: You may feel a small amount of air from the footwell air vents regardless of the air distribution setting...
