Lincoln Corsair: Body Repairs - General Information / Description and Operation - Sealer, Underbody Protection Material and Adhesives

Lincoln Corsair 2020-2024 Service Manual / Body and Paint / Body and Paint / Body Repairs - General Information / Description and Operation - Sealer, Underbody Protection Material and Adhesives

Adhesives

The correct adhesive bonding is essential to repairing the vehicle correctly. Adhesives and mechanical fasteners are used in certain areas of the body structure in place of welding. In addition to providing a structural bond between components, adhesives can also help prevent wind noise, water leaks, exhaust fumes and dust from entering the vehicle. They also provide anti-corrosion barriers.

Refer to specific component removal and installation procedures for correct application and location of adhesives.

Sealers

The correct sealing of joints is essential to repairing the vehicle correctly. Sealers are used to prevent wind noise, water leaks, exhaust fumes and dust from entering the vehicle. They also provide anti-corrosion barriers. Sealers are applied to areas such as doors hem flanges, wheelhouse, floor, cowl, roof and other panel-to-panel attaching point seams.

Sealers should remain flexible after curing and must be paintable. Follow the manufacturer's directions for correct application of these materials.

Any damage to originally sealed joints should be repaired by resealing. Along with attaching points of new panels, open joints that require bridging of sealer to close a gap should be sealed using a heavy-bodied sealer.

NOTE: The following illustrations are examples of sealer and adhesive application and are not all inclusive.

NOTE: Left hand side shown, right hand side similar.

Hood Sealer

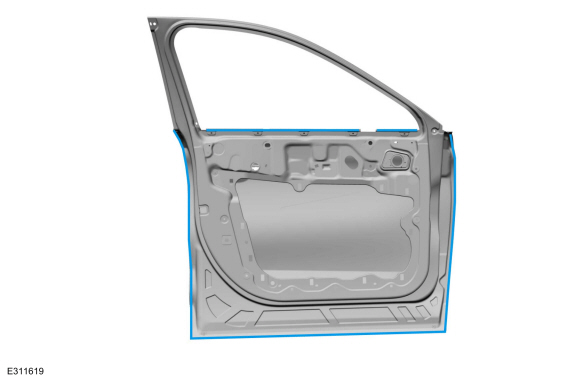

Front Door Sealer

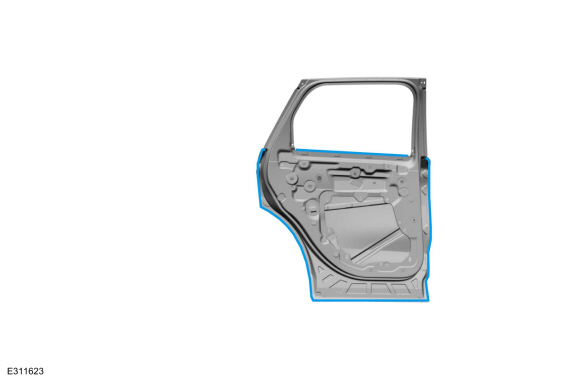

Rear Door Sealer


Liftgate Sealer


Body Sealers and Adhesives Overview

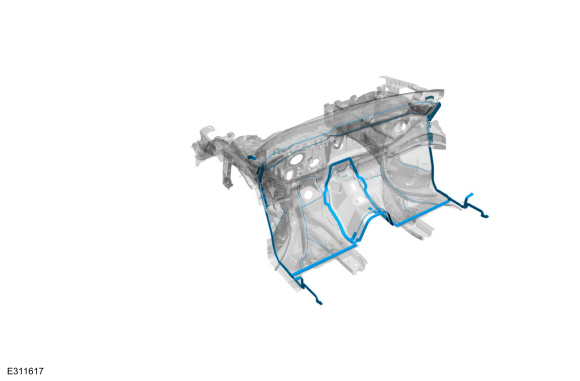

Dash and Cowl Sealers and Adhesives Overview

NVH Protection Material

NVH protection is necessary for road noise reduction. In the case of floor panel application, it also serves as a form of underbody heat control. It is paintable, very durable and has good resistance to abrasion. This material may be applied in many manners. It may be applied through the use of butyl patches, sprayed, rolled or brushed on (obtain locally).

Roof NVH Control

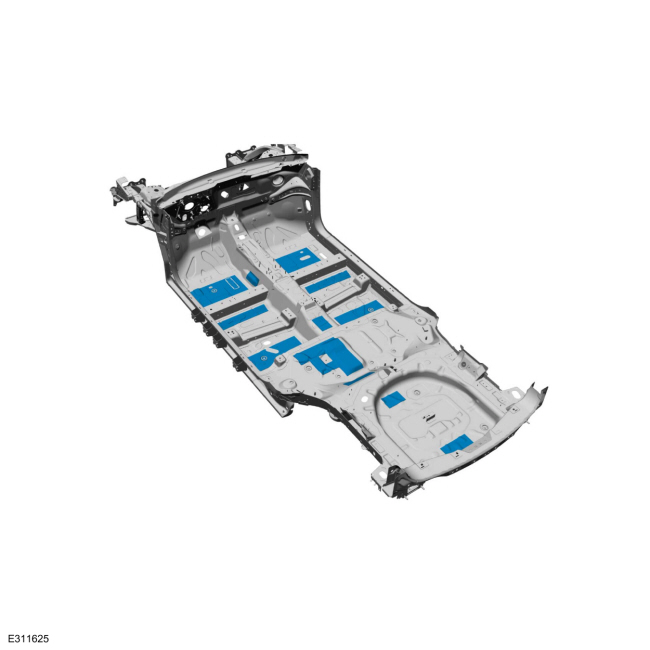

Floor Pan NVH Control

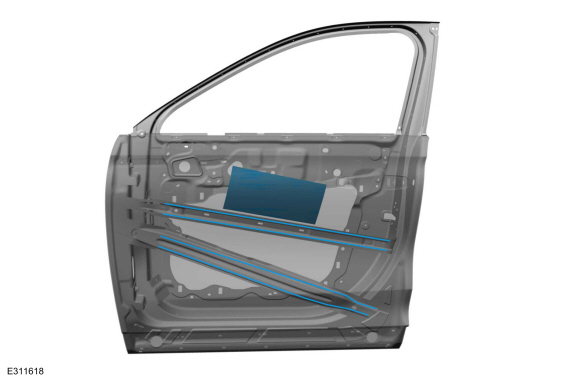

Front Door NVH Control


Rear Door NVH Control

    Description and Operation - Plastic Repairs

    Plastic Components NOTE: Left hand side shown, right hand side similar. The following illustration is not all-inclusive of trim levels available...

    General Procedures - Corrosion Prevention

    Special Tool(s) / General Equipment Rust Protection Coating Gun Undercoating Gun Materials Name Specification ValuGard™ Premium UndercoatingVG101, VG101A -  ValuGard™ Rust InhibitorVG104, VG104A -  Motorcraft® Metal Surface Prep WipesZC-31-B -  Repair NOTE: Undercoating NOTE: The following illustrations are not vehicle spe..
