Lincoln Corsair: Steering Wheel and Column Electrical Components / Removal and Installation - Steering Wheel Multifunction Switch

Lincoln Corsair 2020-2023 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Removal and Installation - Steering Wheel Multifunction Switch

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the steering wheel.
    Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).
  1. Remove the downshift paddle switch.
    Refer to: Downshift Paddle Switch (307-05A Automatic Transmission External Controls - 8-Speed Automatic Transmission – 8F35/8F40, Removal and Installation).
  1. Remove the upshift paddle switch.
    Refer to: Upshift Paddle Switch (307-05A Automatic Transmission External Controls - 8-Speed Automatic Transmission – 8F35/8F40, Removal and Installation).
  1. Remove the retainers, disconnect the wire harness clips and remove the steering wheel rear cover.
  1. NOTE: Position the steering wheel bezel and switches forward to gain access to wiring connectors.

    Separate the steering wheel bezel and switches assembly from the steering wheel, disconnect the electrical connectors and remove the assembly.
    Use the General Equipment: Interior Trim Remover
  1. On both sides

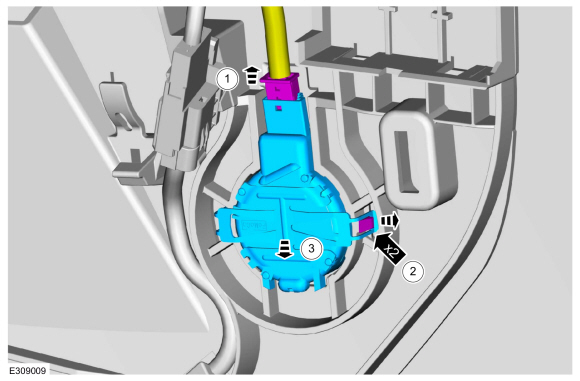

    Remove the retainers and remove the steering wheel switch.
  1. On both sides
    Remove the retainers and remove the steering wheel switch.

Installation

  1. To install, reverse the removal procedure.
