Lincoln Corsair: Power Transfer Unit - 2.0L EcoBoost (177kW/240PS) – MI4 / Removal and Installation - Power Transfer Unit Input Shaft Seal RH
Special Tool(s) /
General Equipment
 |
100-001
(T50T-100-A)
Slide Hammer |
 |
205-153
(T80T-4000-W)
Handle |
 |
308-777 Remover and Installer, PTU Input Shaft Seal |
 |
308-970 Installer, RH halfshaft Seal |
 |
308-973 Remover, PTU Input Sleeve |
Removal
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
Remove the intermediate shaft.
Refer to: Intermediate Shaft (205-04 Front Drive Halfshafts, Removal and Installation).
-

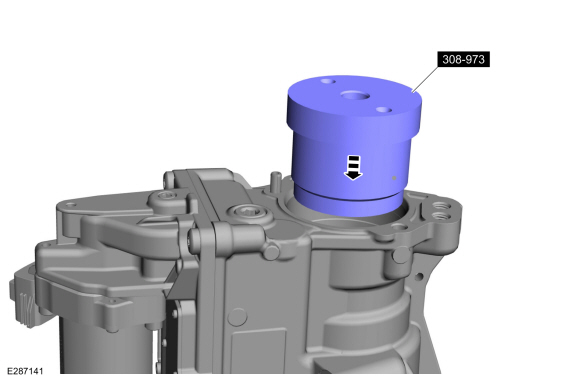

Position the tool on top of the seal.
Use Special Service Tool: 308-973
Remover, PTU Input Sleeve.
-
NOTE:
Make sure piercing tool stops on the sleeve tool for proper piercing of the seal.

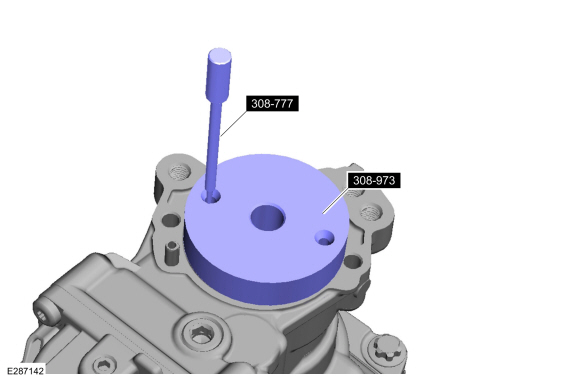

Using the tool, pierce the seal.
Use Special Service Tool: 308-973
Remover, PTU Input Sleeve.
, 308-777
Remover and Installer, PTU Input Shaft Seal.
-
Install the screws and tighten until the tool firmly attaches to the seal.
Use Special Service Tool: 308-973
Remover, PTU Input Sleeve.
-
NOTE:
Make sure piercing tool stops on the sleeve tool for proper piercing of the seal.

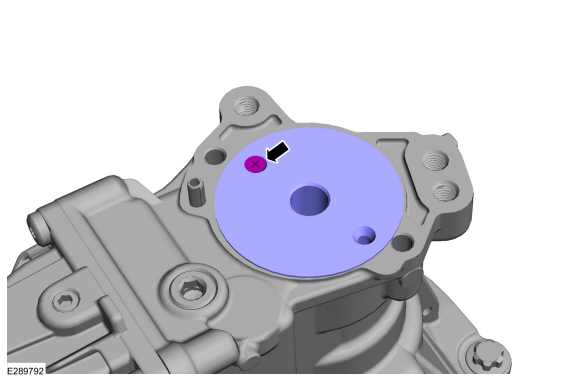

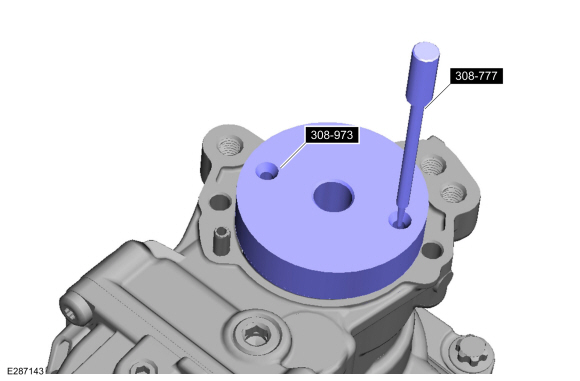

Using the tool, pierce the seal.
Use Special Service Tool: 308-973
Remover, PTU Input Sleeve.
, 308-777
Remover and Installer, PTU Input Shaft Seal.
-

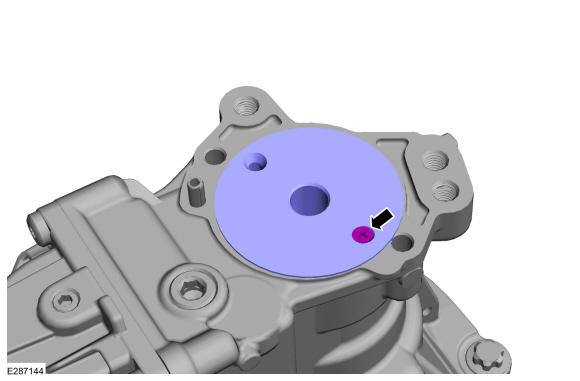

Install the screws and tighten until the tool firmly attaches to the seal.
Use Special Service Tool: 308-973
Remover, PTU Input Sleeve.
-

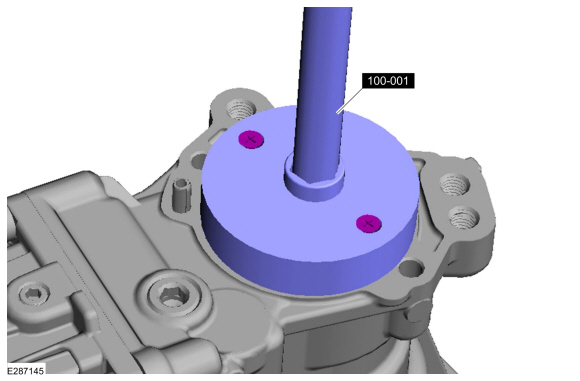

Using the tool, remove the seal.
Use Special Service Tool: 100-001
(T50T-100-A)
Slide Hammer.
Installation
-
NOTE:
Make sure that the new seal in installed correctly.

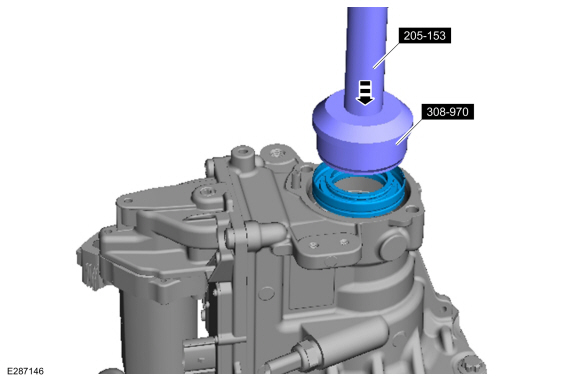

Use Special Service Tool: 205-153
(T80T-4000-W)
Handle.
, 308-970
Installer, RH halfshaft Seal.
-
Install the intermediate shaft.
Refer to: Intermediate Shaft (205-04 Front Drive Halfshafts, Removal and Installation).
