Lincoln Corsair: Side Panel Sheet Metal Repairs / Removal and Installation - B-Pillar and Reinforcement

Special Tool(s) / General Equipment

Materials

Removal

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: BEV (Battery Electric Vehicle), HEV (Hybrid Electric Vehicle) and PHEV (plug-in hybrid electric vehicle) contain a HVB (High Voltage Battery). Before welding near the HVB, the HVB must be removed to avoid heat damage.

NOTE: Left hand side shown, right hand side similar.

NOTE: The B-pillar and B-pillar reinforcement are constructed of Boron steel and cannot be sectioned. They must be replaced at factory seams.

1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
   Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).


1. Remove the B-pillar outer panel.
   Refer to: B-Pillar Outer Panel (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).

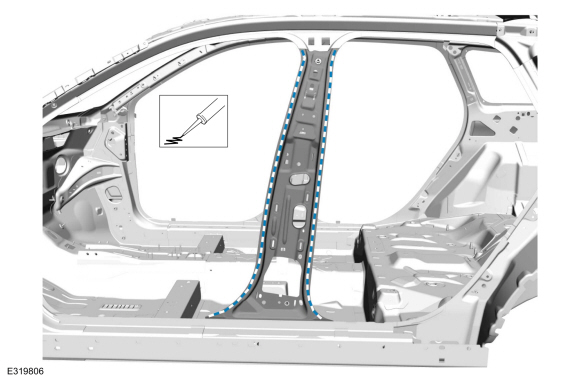

1. Remove the welds.
   Use the General Equipment: Spot Weld Drill Bit

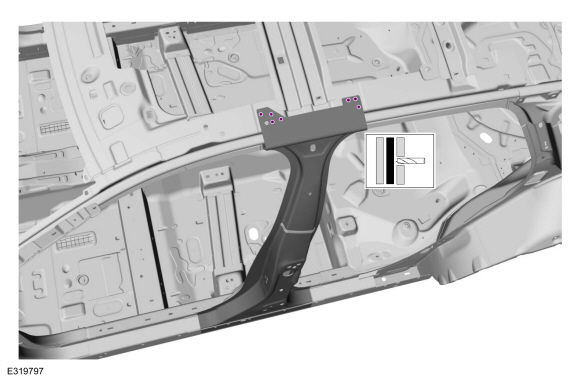

1. Remove the welds.
   Use the General Equipment: Spot Weld Drill Bit

1. NOTE: Pay particular attention to location of adhesives and sealers to aid in installation.

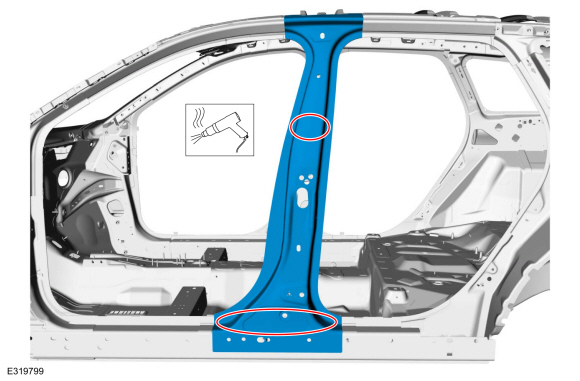

   Remove the B-pillar panel.
   Use the General Equipment: Hot Air Gun

1. Remove the front seatbelt shoulder height adjuster.
   Refer to: Seatbelt Shoulder Height Adjuster (501-20A Seatbelt Systems, Removal and Installation).


1. Remove the seam sealer.
   Use the General Equipment: Hot Air Gun
   Use the General Equipment: Scraper for Straight Edges

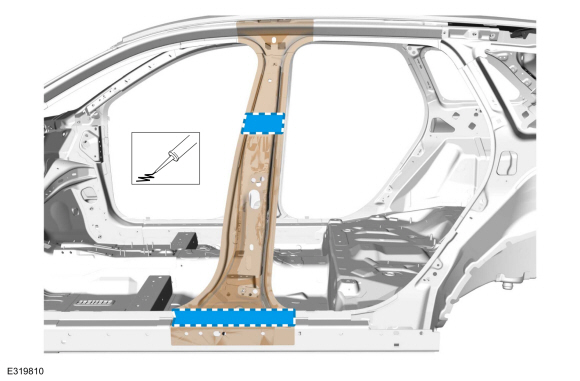

1. Remove the welds.
   Use the General Equipment: Spot Weld Drill Bit

1. NOTE: The B-pillar reinforcement is layered between the rocker panel and the rocker panel reinforcement.

   Remove the B-pillar reinforcement.


Installation

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: The high-voltage battery in a BEV (Battery Electric Vehicle), HEV (Hybrid Electric Vehicle) or PHEV (Plug-In Hybrid Electric Vehicle) can be affected and damaged by excessively high temperatures. The temperature in some body shop paint booths can exceed 60° C (140° F). Therefore, during refinishing operations, the paint booth temperature must set at or below 60° C (140° F) with a bake time of 45 minutes or less. Temperatures in excess of 60° C (140° F) or bake durations longer than 45 minutes will require the high-voltage battery be removed from the vehicle prior to placing in the paint booth.

NOTICE: EV (Electric Vehicle), HEV (Hybrid Electric Vehicle) and PHEV (Plug-In Hybrid Electric Vehicle) vehicles contain a HVB (High Voltage Battery). Before welding near the HVB, the HVB must be removed to avoid heat damage.

NOTICE: If refinishing cure temperatures exceed 60°C (140°F), the charge port light ring must be removed.

NOTE: Left hand side shown, right hand side similar.

NOTE: The B-pillar and B-pillar reinforcement are constructed of Boron steel and cannot be sectioned. They must be replaced at factory seams.

NOTE: Factory welds may be replaced with resistance spot welds or MIG (metal inert gas) plug welds. Resistance spot welds may not be placed directly over original location. They must be placed adjacent to original location and equal factory welds in quantity. MIG (metal inert gas) plug welds must equal factory welds in both location and quantity

1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
   Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).


1. Install, properly position and clamp the B-pillar reinforcement.
   Use the General Equipment: Locking Pliers

1. Install the welds.
   Use the General Equipment: Resistance Spotwelding Equipment

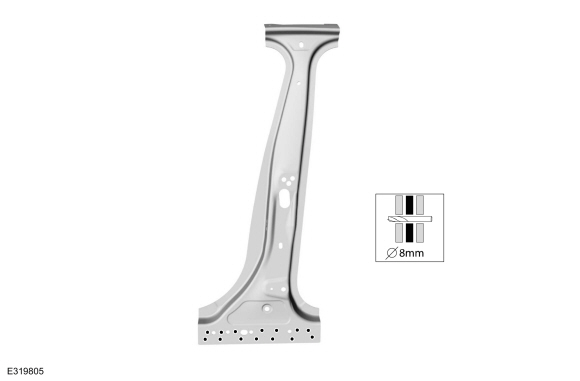

1. Drill plug weld holes.
   Use the General Equipment: 8 mm Drill Bit

1. Sand and clean the mating surfaces to remove e-coating.


1. Apply adhesive.
   Material: Metal Bonding Adhesive / TA-1, TA-1-B, 3M™ 08115, LORD Fusor® 108B, Henkel Teroson EP 5055

1. Install, properly position and clamp the B-pillar.
   Use the General Equipment: Locking Pliers

1. Install the welds.
   Use the General Equipment: Resistance Spotwelding Equipment

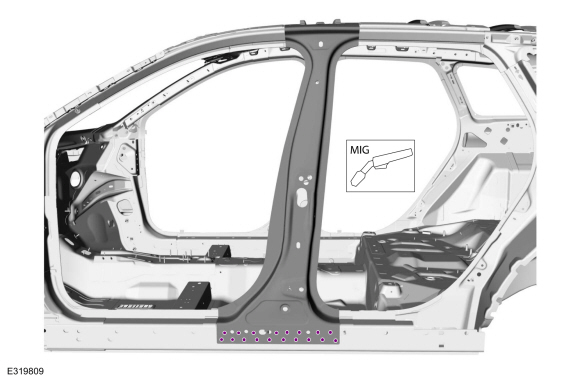

1. Install the welds.
   Use the General Equipment: MIG/MAG Welding Equipment

1. Install NVH foam sealant in areas noted during removal.
   Material: Flexible Foam Repair / 3M™ 08463, LORD Fusor® 121

1. Complete welding with the B-pillar outer panel.


1. Metal finish all welds as necessary using typical metal finishing techniques.


1. Seam Sealing:
   All seams must be sealed to production level.
   Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803DTM

1. Refinish the entire repair area using a Ford approved paint system.


1. Restore corrosion protection.
   Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).


1. Install the seatbelt shoulder height adjuster.
   Refer to: Seatbelt Shoulder Height Adjuster (501-20A Seatbelt Systems, Removal and Installation).


1. 13.Install the B-pillar outer panel.
   Refer to: B-Pillar Outer Panel (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).
